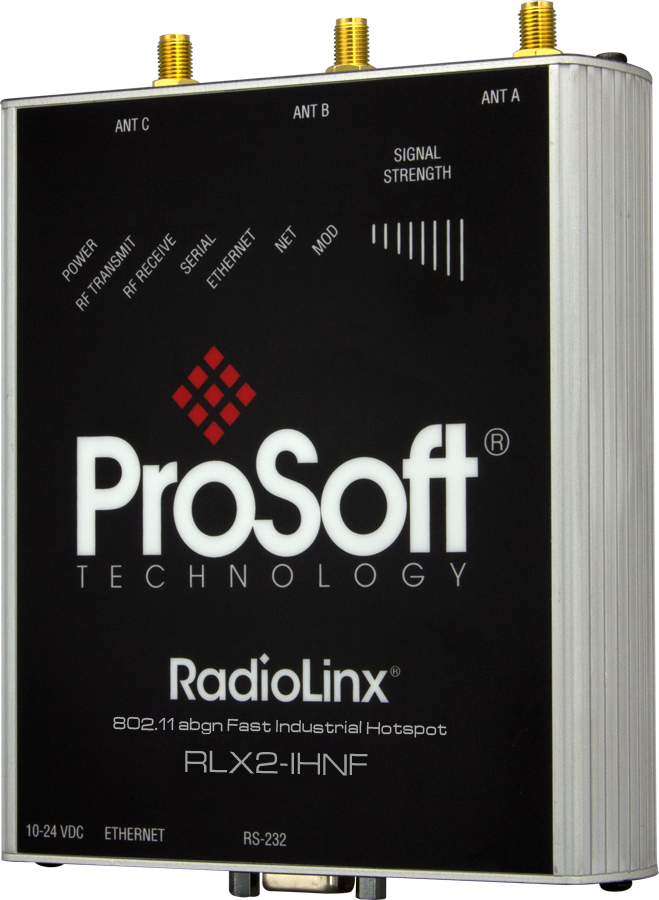

ProSoft RLX2-IHNF-E
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The ProSoft Technology Fast Industrial Hotspot (RLX2-IHNF) provides secure wireless solutions for plant-floor, SCADA automation, process control systems and mobile worker Wi-Fi infrastructure. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 2 mi. / 3.2 km.The Hotspot supports Access Point, Repeater, and Client modes. 802.11n technology delivers fast data rates up to 300 Mbps. This provides excellent packet-per-second performance and robust communications in rugged industrial environments. The 802.11n MIMO & Channel bonding supports demanding wireless applications such as Ethernet I/O and high-resolution video.The included IH Browser configuration and monitoring software allows the user to view network topology, assign IP addresses, monitor network diagnostics, and update radio firmware. The optional OPC Diagnostic Server is ideal for managing long-range wireless SCADA networks.
ProSoft Technology RLX2-IHNF-E is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Environmental
- External Power
- 10 to 24 VDC
- Humidity
- Up to 100% RH, with no condensation
- Operating Temperature
- -40°F to +167°F (-40°C to +75°C), -40°F to +158°F (-40°C to +70°C), RLX2-IHNF Series B only
- Peak Power Consumption
- < 8W
- PoE Injector
- 802.3af PoE Powered Device
Physical
- Antenna Port
- (3) RP-SMA connectors
- Dimensions(H x W x D)
- 5.82 x 4.64 x 1.48 in, 14.8 x 11.8 x 3.8 cm
- Enclosure
- Extruded aluminum with DIN rail mount
- Ethernet Port
- (1) 10/100/1000 Base-T connector, shielded RJ45, IEEE 802.3, 802.3u, 802.3x
- Personality Module
- Industrial microSD Memory Module (included)
- Serial Port
- (1) RS232 DB9 female (supports serial tunneling and ModBus TCP/IP to Modbus RTU connectivity)
- Shock
- IEC 60068 2-6 (20G, 3-Axis)
- Vibration
- IEC 60068 2-27 (5G, 10 to 150 Hz)
- Weight
- 1.1 lbs (499 g)
