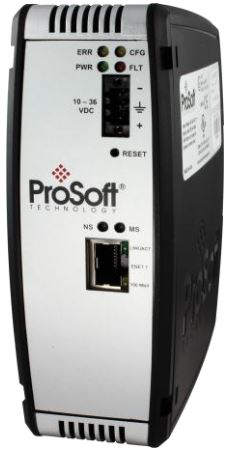

ProSoft PLX31-EIP-PND
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The EtherNet/IP™ to PROFINET® IO Device (slave) gateway offers bi-directional data transfers between EtherNet/IP™ controllers and a PROFINET® IO controller. The EtherNet/IP™ Driver supports I/O connections for guaranteed data delivery or Message instructions to send data to/from the PACs. The gateway supports 1440 bytes of input data and 1440 bytes of output data for larger applications. In addition, the gateway’s multiple I/O connections, allow you to set different RPIs for control data and module diagnostics, enabling you to optimize your Ethernet bandwidth.
ProSoft Technology PLX31-EIP-PND is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hardware
- Current Load
- 24 VDC nominal @ 300 mA
- 10 to 36 VDC @ 610 mA maximum
- Dimensions (H x W x D)
- 5.38 x 1.99 x 4.38 in 13.67 x 5.05 x 11.13 cm
- Ethernet Port
- 10/100Mbit half-duplex RJ45 Connector Electrical Isolation 1500 Vrms at 50 to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991 Ethernet Broadcast Storm Resiliency is less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
- LED Indicators
- Configuration (CFG), Error (ERR), Power (PWR), Hardware Fault (FLT), Network Status (NS), EtherNet/IP™ Class I or Class III Connection Status (EtherNet/IP Only) Module Status (MS), ModuleConfiguration Status (EtherNet/IP Only) Ethernet Communication Port Link/Activity, and 100 mbit
- Operating Temperature
- -25°C to 70°C (-13°F to 158°F)
- Power Supply
- 10 to 36 VDC allowed
- Positive, Negative, GND Terminals
- 24 VDC nominal
- Relative Humidity
- 5% to 95% RH with no condensation
- Shipped With Each Unit
- ProSoft Solutions DVD
- 2.5 mm screwdriver
- 5’ straight-through Ethernet cable
- J180 Power Connector
- Shock
- IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational)
- IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational)
- Storage Temperature
- -40°C to 80°C (-40°F to 176°F)
- Vibration
- IEC 60068-2-6; 5G @ 10 to 150 Hz
Specifications
- CIP Services Supported
- 0x4C - CIP Data Table Read
- 0x4D - CIP Data Table Write
- Command List
- Support for 100 commands per Client, each configurable for command type, IP address, register to/from addressing and word/bit count.
- Command Sets
- PLC-2/PLC-3/PLC5 Basic Command Set
- PLC5 Binary Command Set
- PLC5 ASCII Command Set
- SLC500 Command Set
- Max I/O connection sizeIn/Out
- 496/496 bytes
- Max RPI time
- 10 ms per connection
- Number of Class 1 I/O Connections
- 8
- Number of Class 3 Client Connections
- Unconnected - 1
- Connected - 2
- Number of Class 3 Server Connections
- 5
- Supported Message Types
- PCCC and CIP
- Supported PLC Types
- PLC2, PLC5, SLC, CLX, CMPLX
