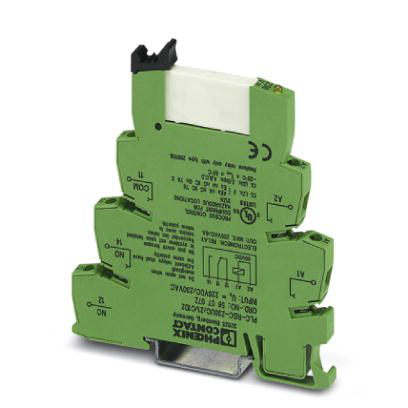

Phoenix Contact 5607072
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PLC-INTERFACE, consisting of DIN rail-mountable basic terminal block with screw connection and plug-in miniature relay with power contact, 1 PDT, input voltage: 230 V AC/220 V DC, UL/cUL: approved for use in Ex Zone Class I, Div. 2Relay Module 5607072
Phoenix Contact 5607072 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Coil side
- Nominal input voltage UN
- 220 V DC
- 230 V AC
- Operating voltage display
- Yellow LED
- Protective circuit
- Bridge rectifier Bridge rectifier
- Typical input current at UN
- 3.2 mA (at UN = 230 V AC)
- 3 mA (at UN = 220 V DC)
- Typical release time
- 15 ms
- Typical response time
- 7 ms
Connection data input side
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 2x 0.5 mm² - 1.5 mm² ()
- 0.14 mm² - 2.5 mm²
- 0.2 mm² - 2.5 mm² ()
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Coil side
- Screw thread
- M 3
- Stripping length
- 8 mm
Connection data output side
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 2x 0.5 mm² - 1.5 mm² ()
- 0.14 mm² - 2.5 mm²
- 0.2 mm² - 2.5 mm² ()
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Contact side
- Screw thread
- M3
- Stripping length
- 8 mm
Contact side
- Contact material
- AgSnO
- Contact type
- 1 PDT
- Interrupting rating (ohmic load) max.
- 23 W (at 110 V DC)
- 20 W (at 48 V DC)
- 40 W (at 220 V DC)
- 18 W (at 60 V DC)
- 1500 VA (for 250 V AC)
- 140 W (at 24 V DC)
- Limiting continuous current
- 6 A
- Maximum inrush current
- 10 A (4 s)
- Maximum switching voltage
- 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
- Minimum switching voltage
- 12 V AC/DC
- Min. switching current
- 10 mA
- Type of switch contact
- Single contact
Dimensions
- Depth
- 94 mm
- Height
- 80 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Conformance
- CE-compliant
- Degree of pollution
- 3
- Designation
- Standards/regulations
- Flammability rating according to UL 94
- V0
- Overvoltage category
- III
- Standards/regulations
- EN 50178
- IEC 60664
- UL, Canada
- Class I, Zone 2, Ex nA nC IIC Gc T6 X
- UL, USA
- Class I, Zone 2, AEx nA nC IIC T6
- UL, USA/Canada
- Class I, Div. 2, Groups A, B, C, D
