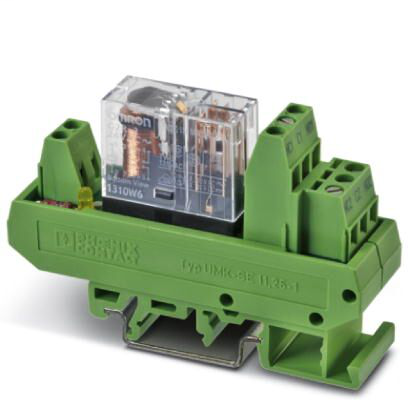

Phoenix Contact 5542738
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Phoenix Contact 5542738 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 65 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Coil side
- Nominal input voltage UN
- 5 V DC
- Operating voltage display
- LED
- Protective circuit
- Damping diode
- Typical input current at UN
- 118.6 mA
- Typical release time
- 5 ms
- Typical response time
- 15 ms
Connection data
- Conductor cross section AWG
- 30 - 14
- Conductor cross section flexible
- 0.14 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Coil side
- Stripping length
- 7 mm
Connection data 2
- Conductor cross section AWG
- 30 - 14
- Conductor cross section flexible
- 0.14 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Contact side
- Stripping length
- 7 mm
Contact side
- Contact material
- AgCdO
- Contact type
- 2 PDT
- Limiting continuous current
- 5 A
- Maximum switching voltage
- 250 V AC (30 V DC)
- Minimum switching voltage
- 5 V (at 10 mA)
- Min. switching current
- 10 mA (At 5 V)
Dimensions
- Depth
- 50 mm
- Height
- 77 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Note
- Trade restriction
- The products are offered exclusively for export outside the EU and the European Economic Area.
