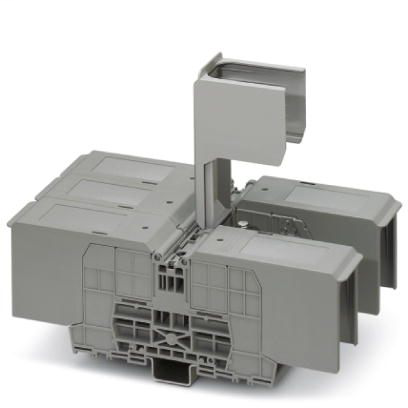

Phoenix Contact 3076057
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bolt connection terminal block, nom. voltage: 1500 V, nominal current: 309 A, connection method: Bolt connection, number of connections: 6, width: 123 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, direct screw connectionBolt connection terminal block 3076057
Phoenix Contact 3076057 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- Bolt diameter
- 10 mm
- 10 mm
- 10 mm
- Cable lug connection according to standard
- DIN 46234
- DIN 46237
- DIN 46235
- Cable lug width, max.
- 30 mm
- 34 mm
- 18 mm
- Conductor cross section flexible max.
- 150 mm²
- Conductor cross section flexible min.
- 6 mm²
- Connection in acc. with standard
- IEC 60947-7-1
- Connection method
- Bolt connection
- Hole diameter, min.
- 10.5 mm
- 10.5 mm
- 10.5 mm
- Max. AWG conductor cross section, flexible
- 300
- Max. cross section for cable lug connection
- 150 mm²
- 150 mm²
- 6 mm²
- Min. AWG conductor cross section, flexible
- 10
- Min. cross section for cable lug connection
- 6 mm²
- 6 mm²
- 16 mm²
- Note
- Connection bolts
- Screw thread
- M10
- M10
- M10
- M10
- Tightening torque max
- 20 Nm
- 20 Nm
- 20 Nm
- 20 Nm
- Tightening torque, min
- 10 Nm
- 10 Nm
- 10 Nm
- 10 Nm
Dimensions
- Height NS 35/15
- 89.5 mm
- Height NS 35/7,5
- 82 mm
- Length
- 235 mm
- Pitch
- 41 mm
- Width
- 123 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Standards and Regulations
- Connection in acc. with standard
- IEC 60947-7-1
- Fire protection for rail vehicles (DIN EN 45545-2) R22
- HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23
- HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24
- HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26
- HL 1 - HL 3
- Flammability rating according to UL 94
- V0
