Phoenix Contact 3074952
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

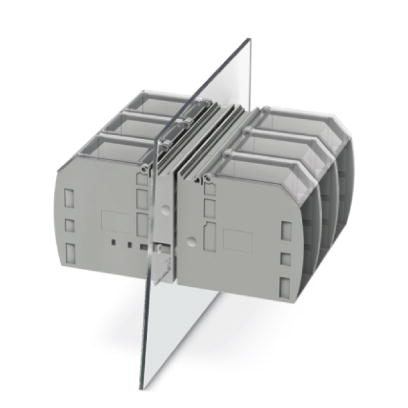

Panel feed-through terminal block, connection method: Bolt connection, Bolt connection, number of positions: 1, load current: 309 A, cross section: 6 mm² - 150 mm², AWG 10 - 250 kcmil, connection direction of the conductor to plug-in direction: 0 °, width: 42.2 mm, color: grayPanel feed-through terminal block 3074952
Phoenix Contact 3074952 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- Conductor cross section AWG max.
- 250 kcmil
- Conductor cross section AWG min.
- 10
- Conductor cross section solid max.
- 150 mm²
- Conductor cross section solid min.
- 6 mm²
- Connection method
- Bolt connection
- Bolt connection
- Connection side
- outside
- inside
- Screw thread
- M10
- Tightening torque max
- 20 Nm
- Tightening torque, min
- 10 Nm
Dimensions
- Pitch
- 42.2 mm
- Plate thickness
- 2 mm - 8 mm
- Width
- 42.2 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- DIN 46234
- UL
- DIN 46235
- IEC 60947-7-1
- Flammability rating according to UL 94
- V0
