Phoenix Contact 3044924
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

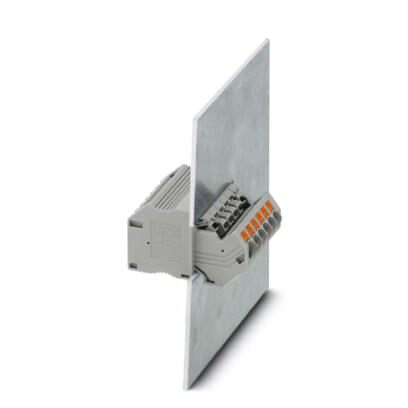

Panel feed-through terminal block, Minimum distance to other conductive surfaces: min 5 mm, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 38, number of positions: 19, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 102.9 mm, height: 26.6 mm, color: gray, mounting type: Wall mountingPanel feed-through terminal block - PT 4-WE/19 - 3044924
Phoenix Contact 3044924 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 26
- Conductor cross section flexible max.
- 4 mm²
- Conductor cross section flexible min.
- 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.14 mm²
- 0.34 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.34 mm²
- 0.14 mm²
- Conductor cross section solid max.
- 4 mm²
- Conductor cross section solid min.
- 0.14 mm²
- 0.34 mm²
- Connection cross sections directly pluggable
- 0.34 mm² 4 mm² 24 12
- Connection in acc. with standard
- IEC 60947-7-1
- Connection method
- Push-in connection
- Internal cylindrical gage
- A3
- Max. AWG conductor cross section, flexible
- 12
- Min. AWG conductor cross section, flexible
- 26
- Note
- Derating curve on request.
- Stripping length
- 10 mm - 12 mm
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
- 0.5 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
- 0.5 mm²
Dimensions
- Height
- 26.6 mm
- Length
- 51.3 mm
- Pitch
- 5.2 mm
- Plate thickness
- 1 mm - 2.5 mm
- Width
- 102.9 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Standards and Regulations
- Connection in acc. with standard
- IEC 60947-7-1
- Flammability rating according to UL 94
- V0
