Description

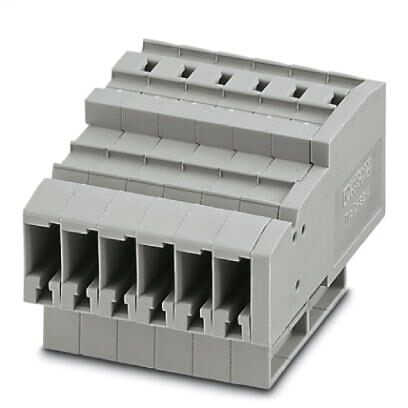

COMBI receptacle, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, number of connections: 2, number of positions: 6, cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, width: 37.2 mm, height: 31 mm, color: gray, mounting type: on mounting plateCOMBI receptacle - SC 4-RZ/ 6 - 3042667
Phoenix Contact 3042667 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- Conductor cross section AWG max.
- 10
- Conductor cross section AWG min.
- 28
- Conductor cross section flexible max.
- 4 mm²
- Conductor cross section flexible min.
- 0.08 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 4 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.14 mm²
- Conductor cross section solid max.
- 6 mm²
- Conductor cross section solid min.
- 0.08 mm²
- Connection in acc. with standard
- IEC 61984
- Connection method
- Spring-cage connection
- Internal cylindrical gage
- A4
- Max. AWG conductor cross section, flexible
- 10
- Min. AWG conductor cross section, flexible
- 28
- Stripping length
- 8 mm - 10 mm
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
- 1 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
- 0.5 mm²
Dimensions
- Drill hole spacing
- 6.2 mm
- End cover width
- 3.2 mm
- Height
- 31 mm
- Hole diameter
- 3.5 mm
- Length
- 48.6 mm
- Pitch
- 6.2 mm
- Plate thickness
- 0.8 mm - 1.5 mm
- Width
- 37.2 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Standards and Regulations
- Connection in acc. with standard
- CUL
- IEC 61984
- Flammability rating according to UL 94
- V0
