Description

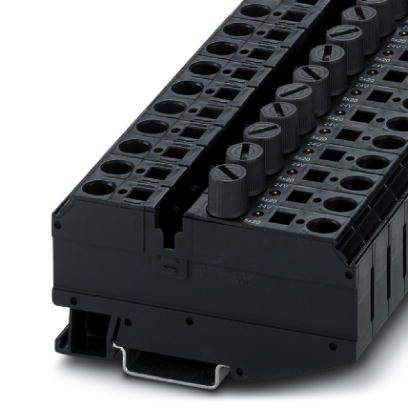

Spring-cage terminal block-fuse terminal block for cartridge fuse inserts with screw cap, cross section: 0.5 - 6 mm², width: 12 mm, color: blackFuse modular terminal block 3025600
Phoenix Contact 3025600 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.
- 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.
- 0.5 mm²
- Conductor cross section AWG max.
- 8
- Conductor cross section AWG min.
- 20
- Conductor cross section flexible max.
- 6 mm²
- Conductor cross section flexible min.
- 0.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 6 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 6 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.5 mm²
- Conductor cross section solid max.
- 10 mm²
- Conductor cross section solid min.
- 0.5 mm²
- Connection method
- Spring-cage connection
- Stripping length
- 12 mm
Dimensions
- Height NS 35/15
- 64 mm
- Height NS 35/7,5
- 56.5 mm
- Length
- 86.5 mm
- Width
- 12 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- IEC 60947-7-3
- CUL
- Fire protection for rail vehicles (DIN EN 45545-2) R22
- HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23
- HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24
- HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26
- HL 1 - HL 3
- Flammability rating according to UL 94
- V0
