Description

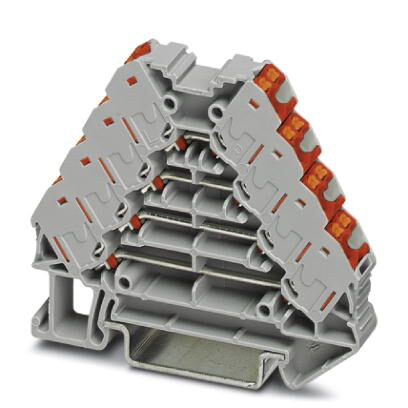

Marshalling panel, nom. voltage: 250 V, nominal current: 10 A, cross section: 0.14 mm² - 2.5 mm², AWG: 12 - 26, connection method: Push-in connection, number of positions: 2, number of connections: 16, width: 8.3 mm, length: 64 mm, color: gray, mounting: NS 35/7,5, NS 35/15Marshalling panel - PTRV 4 /RD-COL - 3001872
Phoenix Contact 3001872 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 26
- Conductor cross section flexible max.
- 1.5 mm²
- Conductor cross section flexible min.
- 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.34 mm²
- 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.34 mm²
- 0.14 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.34 mm²
- 0.14 mm²
- Connection
- 1st, 2nd, 3rd and 4th level
- Connection cross sections directly pluggable
- 0.34 mm² 2.5 mm² 20 12 0.34 mm² 1.5 mm² 20 14
- Connection method
- Push-in connection
- Max. AWG conductor cross section, flexible
- 14
- Min. AWG conductor cross section, flexible
- 26
- Stripping length
- 8 mm - 10 mm
Dimensions
- Height NS 35/15
- 63 mm
- Height NS 35/7,5
- 55.5 mm
- Length
- 64 mm
- Width
- 8.3 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Standards and Regulations
- Flammability rating according to UL 94
- V0
