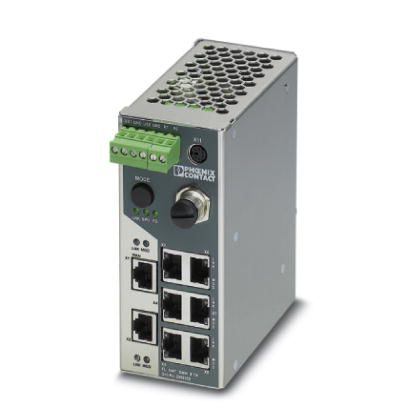

Phoenix Contact 2989365
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Smart Managed Narrow NAT switch with eight 10/100 Mbps RJ45 ports and 1:1 NAT router functionIndustrial Ethernet Switch 2989365
Phoenix Contact 2989365 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 86 kPa - 108 kPa (2000 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (3500 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C (non-condensing)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
Dimensions
- Depth
- 130 mm
- Height
- 133 mm
- Width
- 57 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Function
- Additional functions
- Routing (1:1 NAT, Virtual NAT, Routing)
- DHCP-Client
- BootP
- Basic functions
- Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router
- Diagnostic functions
- LLDP (Link Layer Discovery Protocol)
- SNMP-Traps
- RMON History
- Filter functions
- VLAN (up to 32 VLANs)
- Management
- SNMP v1/v2
- Web-based management (HTTP)
- PROFINET conformance class
- Conformance-Class A
- Redundancy
- Large Tree Support
- MRP (Media Redundancy Protocol)
- FRD (Fast Ring Detection)
- RSTP (Rapid Spanning Tree Protocol)
- STP (Spanning Tree Protocol)
- Signal contact control current
- 600 mA (maximum)
- Signal contact control voltage
- 24 V DC (typical)
- Status and diagnostic indicators
- LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex)
- Supported browsers
- Internet Explorer 5.5 or higher
Interfaces
- Connection method
- RS-232-C, 6-pos. MINI-DIN socket (PS/2)
- Interface 1
- Ethernet
- Interface 4
- Serial (RS-232)
- No. of ports
- 8 (RJ45 ports)
- Note on the connection method
- Auto negotiation and autocrossing
- Signal LEDs
- Supply voltage, data transmission, error, link, activity
- Transmission length
- 100 m (per segment)
- Transmission physics
- Copper
- Transmission speed
- 10/100 Mbps
Network expansion parameters
- Cascading depth
- Network, linear, and star structure: any
- Maximum conductor length (twisted pair)
- 100 m
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noise emission
- EN 61000-6-4:2007 + A1:2011
- Noise immunity
- EN 61000-6-2:2005
- Test result
- 1 m
- Operation/Storage/Transport: 5g, 150 Hz, Criterion 3
- Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse
- Storage/Transport: 50g, 11 ms duration, semi-sinusoidal shock impulse
- Type of test
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27
- Free fall in acc. with IEC 60068-2-32
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27
- Vibration (operation)
- in accordance with IEC 60068-2-6: 5g, 10 Hz - 150 Hz
- Vibration (storage/transport)
- 5g, 10 Hz - 150 Hz, in accordance with IEC 60068-2-6
Supply voltage
- Max. current consumption
- 600 mA
- Residual ripple
- 3.6 VPP (within the permitted voltage range)
- Supply voltage
- 24 V DC (redundant)
- Supply voltage range
- 18 V DC - 32 V DC
- Typical current consumption
- 600 mA (at US = 24 V DC)
