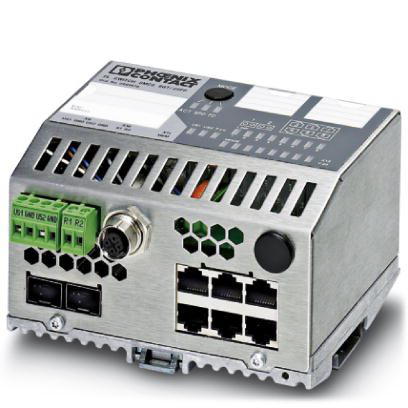

Phoenix Contact 2989323
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ethernet Smart Managed Compact Switch with six 10/100 Mbps RJ45 ports and two 1000 Mbps SFP slotsIndustrial Ethernet Switch 2989323
Phoenix Contact 2989323 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 86 kPa - 108 kPa (2000 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (3500 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C (non-condensing)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
Connection data
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Screw connection
- Stripping length
- 7 mm
Dimensions
- Depth
- 69 mm
- Height
- 110 mm
- Width
- 128 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Function
- Additional functions
- BootP
- DHCP-Client
- Basic functions
- Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP).
- Diagnostic functions
- N:1-Portmirroring
- LLDP (Link Layer Discovery Protocol)
- RMON History
- SNMP-Traps
- ACD (Address Conflict Detection)
- Filter functions
- Static Multicast Filtering
- IGMP Query
- IGMP Snooping (128 groups)
- Auto-Query-Port
- Quality of Service (4 priority classes)
- Port-Priorisierung
- Extended Multicast Filtering
- VLAN
- MAC address table
- 4000
- Management
- SNMP v1/v2
- Serial interface (V.24)
- Web-based management (HTTP)
- PROFINET conformance class
- Conformance-Class B
- PROFINET device function
- PROFINET device
- Fast Startup
- Redundancy
- RSTP (Rapid Spanning Tree Protocol)
- MRP (Media Redundancy Protocol)
- FRD (Fast Ring Detection)
- Large Tree Support
- Signal contact control current
- 650 mA
- Signal contact control voltage
- 24 V (typical)
- Status and diagnostic indicators
- LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex)
- Supported browsers
- Internet Explorer 5.5 or higher
- Time synchronization
- SNTP
Interfaces
- Connection method
- RS-232-C, 6-pos. MINI-DIN socket (PS/2)
- Interface 1
- Ethernet (RJ45)
- Interface 2
- Fiber optic interface
- Interface 5
- Serial (RS-232)
- No. of ports
- 2 (SFP ports)
- 6 (RJ45 ports)
- Note on the connection method
- Auto negotiation and autocrossing
- Signal LEDs
- Supply voltage, data transmission, error, link, activity
- Transmission length
- up to 80 km (Depending on the fiber/SFP module used)
- 100 m (per segment)
- Transmission physics
- Copper
- Depending on the SFP module
- Transmission speed
- 1000 Mbps (full duplex)
- 10/100 Mbps
Network expansion parameters
- Cascading depth
- Network, linear, and star structure: any
- Maximum conductor length (twisted pair)
- 100 m
Security functions
- Link Layer Discovery Protocol (LLDP)
- As per protocol 802.2
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Free from substances that could impair the application of coating
- Yes
- Noise emission
- EN 61000-6-3 +A11
- Noise immunity
- EN 61000-6-2:2005
- Vibration (operation)
- in accordance with IEC 60068-2-6: 5g, 10 Hz - 150 Hz
- Vibration (storage/transport)
- 5g, 10 Hz - 150 Hz, in accordance with IEC 60068-2-6
Supply voltage
- Current consumption
- 650 mA
- Residual ripple
- 3.6 VPP (within the permitted voltage range)
- Supply voltage
- 24 V DC (redundant)
- Supply voltage range
- 18 V DC - 32 V DC
- Typical current consumption
- 600 mA (at US = 24 V DC)
