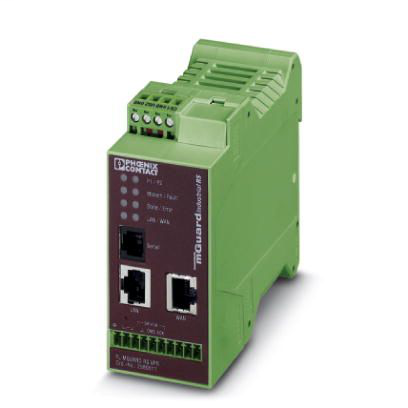

Phoenix Contact 2989310
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Router with intelligent Firewall, data throughput up to 99 Mbps (Wire Speed Performance), Stateful Inspection Firewall for optimum safety and extremely simple configuration, in the ME45 formatRouter 2989310
Phoenix Contact 2989310 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 55 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
Conformity with EMC directives
- Developed in acc. with standard
- IEC 61000-6.2
- Test result
- 6 kV contact discharge, 8 kV air discharge
- 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
- 10 V/m (80 MHz - 2000 MHz)
- 2 kV power line, 1kV data line
- power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
- Test standard
- IEC 61000-4-4 (burst)
- IEC 61000-4-5 (surge)
- IEC 61000-4-2 (ESD)
- IEC 61000-4-3 (immunity to radiated interference)
- IEC 61000-4-6 (immunity to conducted interference)
Dimensions
- Depth
- 112 mm
- Height
- 99 mm
- Width
- 45 mm
Function
- Basic functions
- Router with intelligent Firewall
- Processor
- 533 MHz
- Signal contact control current
- 170 mA (typical)
- Signal contact control voltage
- 24 V DC (typical)
- Status and diagnostic indicators
- LEDs:P1, P2, Fault, State, Error, LAN, WAN
- Supported browsers
- HTTPS support required
Interfaces
- Interface 1
- Ethernet
- No. of ports
- 2
- Signal LEDs
- Supply voltage, data transmission, error, link, activity
- Transmission length
- 100 m (per segment)
- Transmission physics
- Ethernet in RJ45 twisted pair
- Transmission speed
- 10/100 Mbps
Network expansion parameters
- Maximum conductor length (twisted pair)
- 100 m
Security functions
- Dynamic Host Configuration Protocol (DHCP) support
- Server or Relay Agent
- Encryption methods
- DES, 3DES, AES-128, -192, -256
- Filtering
- MAC and IP addresses, ports, protocols
- Firewall data throughput
- max. 210 Mbps (Router mode, default firewall rules, bidirectional throughput)
- max. 149 Mbps (Stealth mode, default firewall rules, bidirectional throughput)
- Firewall rules
- Configurable stateful inspection firewall
- Link Layer Discovery Protocol (LLDP)
- As per protocol 802.2
- Network Time Protocol (NTP) client
- Client
- Protection against
- IP spoofing, DoS and Syn Flood Protection
- Remote Syslog Logging
- On externals server
- Routing
- Standard routing, NAT, 1:1-NAT, port forwarding
- Virtual private network (VPN) throughput
- max. 58 Mbps (Stealth mode, VPN bidirectional throughput)
- max. 85 Mbps (Router mode, VPN bidirectional throughput)
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noise emission
- EN 61000-6-4
- Noise immunity
- EN 61000-6-2:2005
Supply voltage
- Residual ripple
- 3.6 VPP (within the permitted voltage range)
- Supply voltage
- 24 V DC
- Supply voltage range
- 9 V DC - 36 V DC
- Typical current consumption
- 170 mA
