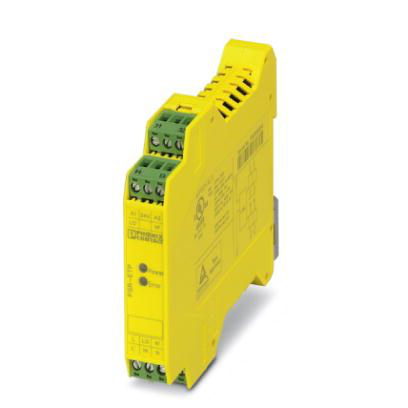

Phoenix Contact 2986562

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 55 °C
• Ambient temperature (storage/transport)
  • -40 °C - 65 °C
• Maximum altitude
  • ≤ 2000 m (Above sea level)
• Max. permissible humidity (storage/transport)
  • ≤ 85 % (Condensation and icing are not permitted based on the average annual temperature)
  • ≤ 85 % (On an individual basis, condensation and icing are not permitted)

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Spring-cage connection
• pluggable
  • Yes
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 114.5 mm
• Height
  • 112 mm
• Width
  • 17.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Input data

• Input voltage range
  • 20.4 V DC - 26.4 V DC
• Input voltage range in reference to U_N
  • 0.85 - 1.1
• Inrush current
  • 200 mA
• Nominal input voltage U_N
  • 24 V DC
• Operating voltage display
  • Green LED (POWER)
• Recovery time
  • 1 s
• Typical input current at U_N
  • 75 mA
• Typical response time
  • 30 ms

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Contact material
  • AgNi, gold-flashed
• Contact type
  • 1 enabling current path
• Inrush current, minimum
  • 100 mA
• Limiting continuous current
  • 5 A (N/O contact, pay attention to the derating)
• Maximum inrush current
  • 5 A
• Maximum switching voltage
  • 250 V AC (125 V DC)
• Mechanical service life
  • approx. 107 cycles
• Minimum switching voltage
  • 15 V AC/DC
• Sq. Total current
  • 25 A2 (ITH2 = I12 + - + IN2)
• Switching capacity min.
  • 1.5 W

Safety-related characteristic data

• Designation
  • IEC 61508 - Low demand
• Safety Integrity Level (SIL)
  • 3

Standards and Regulations

• Degree of pollution
  • 2
• Designation
  • Air clearances and creepage distances between the power circuits
• Overvoltage category
  • III
• Rated insulation voltage
  • 250 V AC
• Rated surge voltage/insulation
  • 6 kV/safe isolation (through protective impedance)
• Shock
  • 15g
• Standards/regulations
  • DIN EN 50178
• UL, USA/Canada
  • UL applied for
• Vibration (operation)
  • 10 Hz ...150 Hz, 2g
