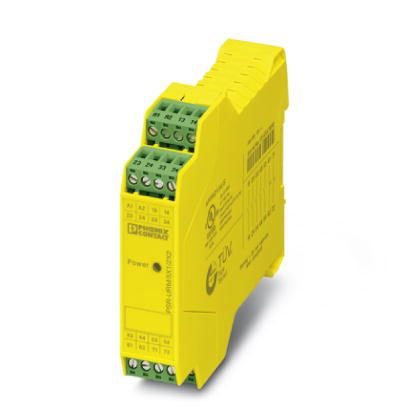

Phoenix Contact 2981415

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 55 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Maximum altitude
  • ≤ 2000 m (Above sea level)
• Max. permissible humidity (storage/transport)
  • 75 % (on average, 85% infrequently, non-condensing)
• Max. permissible relative humidity (operation)
  • 75 % (on average, 85% infrequently, non-condensing)

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Spring-cage connection
• pluggable
  • Yes
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 112 mm
• Height
  • 114.5 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Input data

• Inrush current
  • typ. 600 mA (Δt = 200 µs at Us)
• Maximum switching frequency
  • 0.5 Hz
• Operating voltage display
  • 1 x green LED
• Power consumption at U_S
  • typ. 1.32 W
• Protective circuit
  • Surge protection Varistor
• Rated control circuit supply voltage U_S
  • 120 V AC/DC -20 % - +10 %
• Rated control supply current I_S
  • typ. 11 mA
• Recovery time
  • < 500 ms
• Typical release time
  • typ. 20 ms (when controlled via A1)
• Typ. starting time with U_s
  • typ. 20 ms (when controlled via A1)

Output data

• Contact material
  • AgSnO2
• Contact type
  • 2 confirmation current paths
  • 5 enabling current paths
• Inrush current, minimum
  • 10 mA
• Interrupting rating (ohmic load) max.
  • 240 W (N/O contact, 60 V DC, τ = 0 ms)
  • 88 W (N/O contact, 220 V DC, τ = 0 ms)
  • 144 W (N/O contact, 24 V DC, τ = 0 ms)
  • 1380 VA (N/O contact, 230 V AC, τ = 0 ms)
  • 110 W (N/O contact, 110 V DC, τ = 0 ms)
  • 288 W (N/O contact, 48 V DC, τ = 0 ms)
• Limiting continuous current
  • 6 A (N/O contact)
  • 3 A (N/C contact)
• Maximum inrush current
  • 6 A
• Maximum interrupting rating (inductive load)
  • 42 W (N/O contact, 24 V DC, τ = 40 ms)
  • 42 W (N/O contact, 220 V DC, τ = 40 ms)
  • 42 W (N/O contact, 48 V DC, τ = 40 ms)
  • 42 W (N/O contact, 110 V DC, τ = 40 ms)
  • 42 W (N/O contact, 60 V DC, τ = 40 ms)
• Maximum switching voltage
  • 230 V AC/DC (Observe the load curve)
• Mechanical service life
  • 10x 106 cycles
• Minimum switching voltage
  • 5 V AC/DC
• Output fuse
  • 6 A gL/gG (N/C contact)
  • 10 A gL/gG (N/O contact)
  • 4 A gL/gG (N/O contact, for low-demand applications)
• Sq. Total current
  • 72 A2
• Switching capacity
  • min. 50 mW
• Switching capacity (360/h cycles)
  • 4 A (24 V (DC13))
  • 4 A (250 V (AC15))
• Switching capacity according to IEC 60947-5-1
  • 3 A (24 V (DC13))
  • 3 A (250 V (AC15))

Safety-related characteristic data

• Category
  • 1
• Designation
  • IEC 61508 - High demand
  • IEC 61508 - Low demand
  • EN ISO 13849
• Performance level (PL)
  • c
• Safety Integrity Level Claim Limit (SIL CL)
  • 1
• Safety Integrity Level (SIL)
  • 1
  • 1
• Stop category
  • 0

Standards and Regulations

• Conformance
  • CE-compliant
• Degree of pollution
  • 2
• Designation
  • Air clearances and creepage distances between the power circuits
• Overvoltage category
  • III
• Rated insulation voltage
  • 250 V
  • 250 V
• Rated surge voltage/insulation
  • 4 kV basic insulation (4 kV safe isolation, reinforced insulation between A1/A2, 13/14, 23/24, 33/34 to 43/44, 53/54, 61/62, 71/72)
• Shock
  • 15g (In the event of stress caused by shock, contact reactions are possible for up to 2 ms.)
• Standards/regulations
  • DIN EN 50178
• Vibration (operation)
  • 10 Hz ...150 Hz, 2g (In the event of stress caused by vibration, contact reactions are possible for up to 1 ms.)
