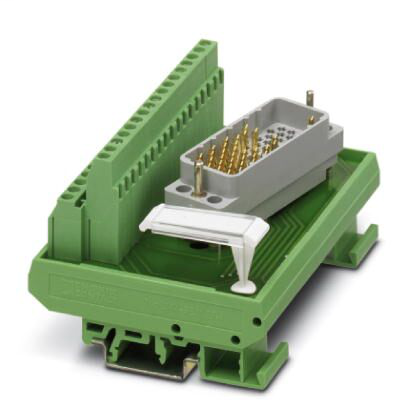

Phoenix Contact 2975858

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • IP00
  • ≥ IP54 (Installation location)
• Maximum altitude
  • ≤ 2000 m

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection in acc. with standard
  • IEC / EN
• Connection method
  • Screw connection
• Connection name
  • Field level
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data 2

• Coding
  • 1-1
• Connection method
  • ELCO connector
• Connection name
  • Controller level
• Note
  • Pin strip, Type 8016, right
• Number of connections
  • 1
• Number of positions
  • 32

Dimensions

• Depth
  • 58.5 mm
• Height
  • 77 mm
• Width
  • 101.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Note

• Note
  • No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
  • At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates).
• Type of note
  • Notes on operation

Standards and Regulations

• Designation
  • Air clearances and creepage distances
• Insulation
  • Functional insulation
• Overvoltage category
  • II
• Pollution degree
  • 2
• Rated insulation voltage
  • 85 V
• Rated surge voltage
  • 0.8 kV
• Standards/regulations
  • DIN EN 50178
