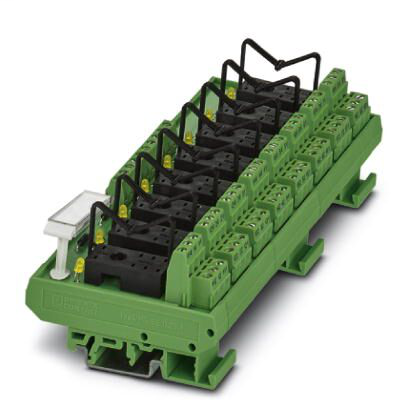

Phoenix Contact 2975722

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C

Connection data

• Conductor cross section AWG
  • 26 - 14
• Conductor cross section flexible
  • 0.14 mm² - 1.5 mm²
• Conductor cross section solid
  • 0.14 mm² - 1.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Input
• Number of connections
  • 1
• Number of positions
  • 10
• Screw thread
  • M3
• Stripping length
  • 6 mm

Connection data 2

• Conductor cross section AWG
  • 26 - 14
• Conductor cross section flexible
  • 0.14 mm² - 1.5 mm²
• Conductor cross section solid
  • 0.14 mm² - 1.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Output
• Number of connections
  • 48
• Number of positions
  • 6
• Screw thread
  • M3
• Stripping length
  • 6 mm

Dimensions

• Depth
  • 59 mm
• Height
  • 77 mm
• Width
  • 168.8 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• Input voltage range in reference to UN
  • 0.9 - 1.1
• Nominal input voltage UN
  • 24 V DC ±10 %
• Protective circuit/component
  • Polarity protection diode
  • Damping diode
• Status display/channel
  • Yellow LED
• Type of protection
  • Reverse polarity protection
  • Free-wheeling diode

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Contact type
  • 2 PDT
• Error detection (line break / short-circuit)
  • no
• Limiting continuous current
  • 5 A
• Maximum switching voltage
  • 250 V AC

Standards and Regulations

• Overvoltage category
  • III
• Pollution degree
  • 2
• Standards/regulations
  • DIN VDE 0110
