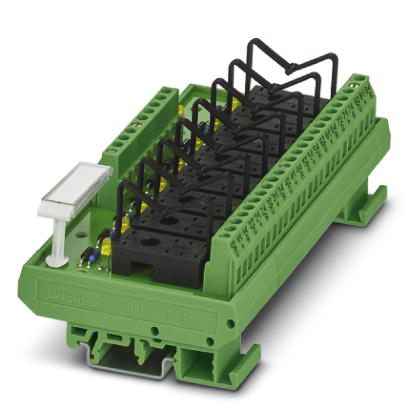

Phoenix Contact 2973737
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VARIOFACE module, for 8 plug-in miniature relays or miniature solid-state relays, with LED, negative switching, 24 V DC input voltageMultiple relay module 2973737
Phoenix Contact 2973737 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
Connection data for connection 1
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Input
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data for connection 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Output
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 59 mm
- Height
- 77 mm
- Width
- 135 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- REACh SVHC
- Lead 7439-92-1
Input data
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Yellow LED
- Protective circuit/component
- Damping diode
- Polarity protection diode
- Status display/channel
- Yellow LED
- Type of protection
- Reverse polarity protection
- Free-wheeling diode
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact type
- 1 PDT or 1 N/O contact
- Limiting continuous current
- 5 A
- Maximum switching voltage
- 250 V AC/DC
Standards and Regulations
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 4 kV (basic insulation)
- Standards/regulations
- DIN EN 50178
