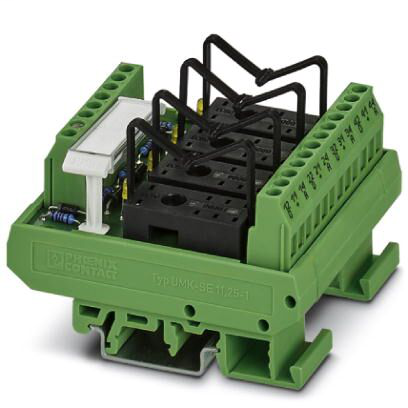

Phoenix Contact 2972835
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VARIOFACE module, for 4 plug-in miniature relays or miniature optocouplers, with LED, 24 V DC input voltageMultiple relay module - UMK- 4 RM 24DC - 2972835
Phoenix Contact 2972835 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 65 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP00
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Input
- Number of connections
- 2
- Number of positions
- 8
- Screw thread
- M3
Connection data 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Output
- Number of connections
- 12
- Number of positions
- 3
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 59 mm
- Height
- 77 mm
- Width
- 67.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input voltage range in reference to UN
- 0.8 - 1.1
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Yellow LED
- Protective circuit/component
- Polarity protection diode
- Damping diode
- Status display/channel
- Yellow LED
- Type of protection
- Free-wheeling diode
- Reverse polarity protection
- Typical input current at UN
- 2 mA (Light indicator)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact type
- 1 PDT
- Error detection (line break / short-circuit)
- no
- Limiting continuous current
- 5 A
- Maximum inrush current
- 8 A
- Maximum switching voltage
- 250 V AC/DC
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 4 kV (Basic insulation between output contact current paths)
- 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths)
- Standards/regulations
- DIN EN 50178
- IEC 60664
