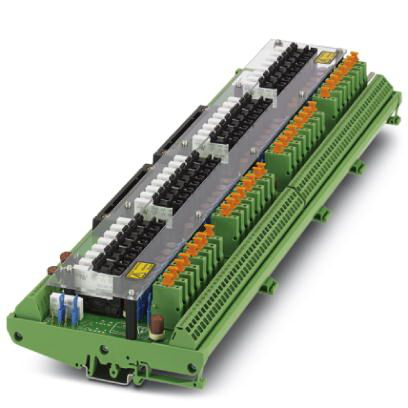

Phoenix Contact 2968551

Ambient conditions

• Ambient temperature (operation)
  • -15 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • IP00
  • ≥ IP54 (Installation location)
• Maximum altitude
  • ≤ 2000 m

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Spring-cage connection with disconnect knife
• Connection name
  • Field level
• Number of connections
  • 1

Connection data 2

• Connection method
  • Yokogawa KS-compatible
• Connection name
  • Controller level
• Note
  • Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
• Number of connections
  • 2
• Number of positions
  • 50
• Torque
  • 0.5 Nm

Dimensions

• Depth
  • 57 mm
• Height
  • 127.5 mm
• Width
  • 419.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Cadmium oxide 1306-19-0

Input data

• Input voltage range in reference to UN
  • 0.9 - 1.1
• Nominal input voltage UN
  • 24 V DC ±10 %
• Operating voltage display
  • Green LED
• Typical input current at UN
  • 9 mA (K1 – K32)
• Typical release time
  • 7 ms (K1 – K32)
  • 5 ms (K33)
• Typical response time
  • 5 ms (K1 – K32)
  • 5 ms (K33)

Note

• Note
  • Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
  • No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
  • At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates).
• Type of note
  • Notes on operation
• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Contact material
  • AgSnO₂
• Contact type
  • 1 PDT
• Interrupting rating (ohmic load) max.
  • 20 W (48 V DC)
  • 700 VA (250 V AC)
  • 67 W (24 V DC)
  • 18 W (60 V DC)
  • 23 W (110 V DC)
  • 40 W (220 V DC)
• Limiting continuous current
  • 2.8 A (observe derating)
• Maximum switching voltage
  • 250 V AC/DC
• Minimum switching voltage
  • 12 V AC/DC
• Min. switching current
  • 10 mA
• Output fuse
  • 4 A (per channel)

Standards and Regulations

• Designation
  • Air clearances and creepage distances between the power circuits
• Insulation
  • Basic insulation
• Overvoltage category
  • III
• Pollution degree
  • 2
• Rated insulation voltage
  • 250 V AC
• Rated surge voltage
  • 4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths)
• Standards/regulations
  • DIN EN 50178

Supported controller

• Controller
  • YOKOGAWA STARDOM
  • YOKOGAWA CS3000 CentumVP
• suitable I/O card
  • ADV561
  • ADV551
  • NFDV551
  • NFDV561
