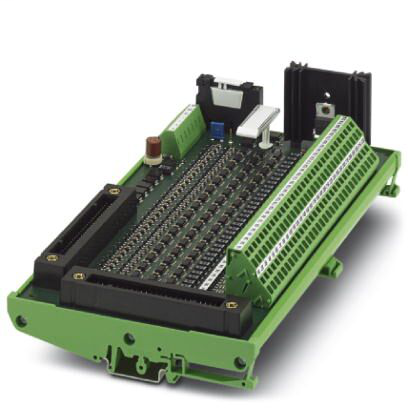

Phoenix Contact 2968506

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • ≥ IP54 (Installation location)
  • IP00
• Maximum altitude
  • ≤ 2000 m

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Spring-cage connection
• Connection name
  • Field level

Connection data 2

• Connection method
  • Yokogawa KS-compatible
• Connection name
  • Controller level
• Note
  • Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
• Number of connections
  • 2
• Number of positions
  • 50
• Torque
  • 0.5 Nm

Control circuit

• Internal resistance
  • ~ 1 kΩ
• Non-load voltage
  • 8.2 V DC ±10 %
• Short-circuit current
  • ≤ 10 mA
• Switching hysteresis
  • ~ 0.2 mA
• Switching point
  • 0 mA - 0.35 mA (In the event of a wire break)
  • 6.3 mA - 10 mA (in the event of a short-circuit)
  • ≤ 1.2 mA (in disabled state)
  • ≥ 2.1 mA (In conductive state)

Dimensions

• Depth
  • 67 mm
• Height
  • 127.5 mm
• Width
  • 223.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Input data

• Nominal input voltage UN
  • 24 V DC ±10 % (Supply voltage)
• Operating voltage display
  • Green LED
• Typical input current at UN
  • max. 350 mA

Note

• Note
  • Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
• Type of note
  • Notes on operation
• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Error detection (line break / short-circuit)
  • LED red
• Maximum inrush current
  • 10 mA
• Maximum switching voltage
  • 26.4 V DC
• Minimum switching voltage
  • 18.5 V DC
• Status display
  • Yellow LED

Standards and Regulations

• Designation
  • Air clearances and creepage distances between the power circuits
• Overvoltage category
  • I
• Pollution degree
  • 2
• Rated insulation voltage
  • 50 V DC
• Rated surge voltage
  • 0.4 kV (Functional insulation)
• Standards/regulations
  • DIN EN 50178

Supported controller

• Controller
  • YOKOGAWA CS3000 CentumVP
  • YOKOGAWA STARDOM
• suitable I/O card
  • ADV151
  • NFDV161
  • NFDV151
  • ADV161
