Phoenix Contact 2968386
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

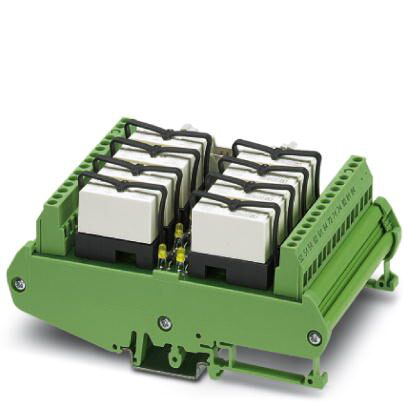

Varioface output module, with 8 miniature relays, 1 PDT, plugged, for 24 V DC (incl. relay)Active module - UM- 8 RM/RT-G24/21/PLC - 2968386
Phoenix Contact 2968386 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP00
Connection data
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Connection data 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Field level
- Number of connections
- 24
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 3
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Supply
- Number of connections
- 2
- Number of positions
- 3
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 62.5 mm
- Height
- 125.5 mm
- Width
- 80.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input voltage range in reference to UN
- 0.85 - 1.1
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Green LED
- Protective circuit/component
- Damping diode
- Status display/channel
- Yellow LED
- Type of protection
- Free-wheeling diode
- Typical input current at UN
- 18 mA
- Typical release time
- 10 ms
- Typical response time
- 8 ms
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact material
- AgNi
- Contact type
- 1 PDT
- Error detection (line break / short-circuit)
- no
- Interrupting rating (ohmic load) max.
- 120 W (at 24 V DC)
- 1250 VA (for 250 V AC)
- 80 W (at 220 V DC)
- 50 W (at 110 V DC)
- 58 W (at 48 V DC)
- 48 W (at 60 V DC)
- Limiting continuous current
- 5 A
- Maximum switching voltage
- 250 V AC/DC
- Minimum switching voltage
- 12 V AC/DC
- Min. switching current
- 10 mA
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths)
- 4 kV (Basic insulation between output contact current paths)
- Standards/regulations
- IEC 60664
- DIN EN 50178
Supported controller
- Controller
- ALLEN-BRADLEY PLC 5
- SIEMENS S7-400
- ALLEN-BRADLEY SLC 500
- MITSUBISHI MELSEC Q
- GE-FANUC RX3i
- HONEYWELL Experion PKS C200
- SIEMENS S7-300 / ET 200 M
- MITSUBISHI MELSEC L
- SIEMENS S7-1500
- suitable I/O card
- 6ES7 422-7BL00-0AB0
- 1746 OB 32
- 6ES7 322-1BH01-0AA0
- IC694MDL754
- 6ES7 522-1BH01-0AB0
- CPU 313C
- CPU 313C-2PtP
- 6ES7 323-1BH01-0AA0
- LY42PT1P
- 6ES7 323-1BL00-0AA0
- QY82P
- 1771 OBN
- CPU 313C-2DP
- 6ES7 522-1BL01-0AB0
- LY41PT1P
- CPU 314C-2PtP
- CPU 314C-2DP
- 6ES7 322-1BL00-0AA0
- QY81P
- 6ES7 522-1BH00-0AB0
- 6ES7 422-1BL00-0AA0
- 6ES7 522-1BL00-0AB0
- TC-ODD 321
