Phoenix Contact 2967316
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

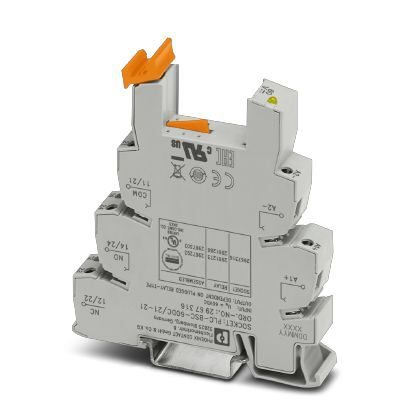

14 mm PLC basic terminal block with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, 2 PDTs, input voltage 60 V DCRelay base - PLC-BSC- 60DC/21-21 - 2967316
Phoenix Contact 2967316 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Connection data
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm² (Single ferrule)
- 0.14 mm² - 2.5 mm²
- 2x 0.5 mm² - 1.5 mm² (TWIN ferrule)
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Input side
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 2x 0.5 mm² - 1.5 mm² (TWIN ferrule)
- 0.2 mm² - 2.5 mm² (Single ferrule)
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Output side
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 94 mm
- Height
- 80 mm
- Width
- 14 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Nominal input voltage UN
- 60 V DC
- Protective circuit
- Damping diode
- Status display
- LED
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Compatible components
- Miniature relay, REL-MR-60DC/21-21AU, REL-MR-60DC/21-21
Standards and Regulations
- Connection in acc. with standard
- CUL
