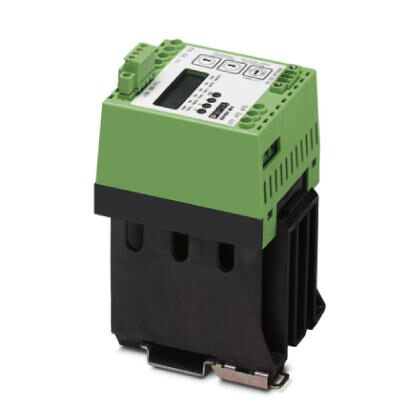

Phoenix Contact 2963569
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Electronic reversing load relay, with integrated soft starter, 3 x 8 A load currentPower electronics - ELR W3/ 9-400 S - 2963569
Phoenix Contact 2963569 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 10
- Conductor cross section flexible
- 0.2 mm² - 4 mm²
- Conductor cross section solid
- 0.2 mm² - 6 mm²
- Connection method
- Screw connection
- Connection name
- Control circuits
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Conductor cross section AWG
- 24 - 10
- Conductor cross section flexible
- 0.2 mm² - 4 mm²
- Conductor cross section solid
- 0.2 mm² - 6 mm²
- Connection method
- Screw connection
- Connection name
- Load circuit
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 120 mm
- Height
- 84.1 mm
- Width
- 62.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Indication
- Red LED
- Input name
- Control input right/left
- Input voltage range in reference to UN
- 0.8 - 1.2
- Nominal input voltage UN
- 24 V DC
- Nominal supply voltage
- 24 V DC
- Operating voltage display
- Green LED
- Protective circuit
- Reverse polarity protection Series polarity protection diode
- Surge protection
- Quiescent current
- 85 mA
- Rated actuating current IC
- 5 mA
- Rated actuating voltage UC
- 24 V DC
- Status display
- Yellow LED
- Switch-over frequency
- < 2.5 Hz (At cos φ = 0.5)
- Triggering voltage range
- 19.2 V DC - 28.8 V DC
- Typical input current at UN
- 5 mA
- Voltage range with reference to UC
- 0.8 - 1.2
Output data load output
- Leakage current
- 5 mA (IL1, in switched-off state)
- Load current range
- 150 mA - 8 A (at 20 °C Tu, see derating)
- Operating voltage range
- 110 V AC - 433 V AC
- Output name
- AC output
- Protective circuit/component
- RC element
- Rated operating voltage Ue
- 400 V AC
- Residual voltage
- typ. 1.5 V (For IL)
- Surge current
- 230 A (tp = 10 ms, at 25 °C)
- Type of protection
- RC element
- Surge protection
Standards and Regulations
- Designation
- Standards/regulations
- Standards/regulations
- DIN EN 50178
- EN 61000-6-2
- EN 61000-6-4
