Phoenix Contact 2962913
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

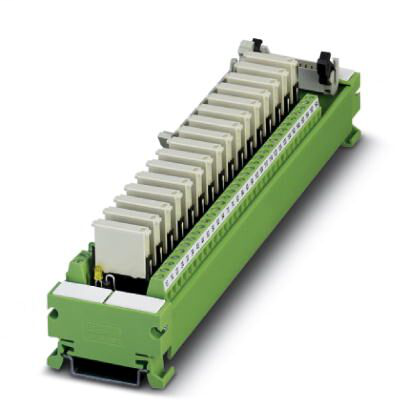

VARIOFACE COMPACT LINE, output module with 16 miniature relays, 1 N/O contact each, plugged, for 24 V DC (incl. relay)Active module - UM 45-16RM/MR-G24/1/PLC - 2962913
Phoenix Contact 2962913 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP00
Connection data
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 1.5 mm²
- Connection method
- Screw connection
- Connection name
- Field level
- Number of connections
- 36
- Number of positions
- 3
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 3
- Conductor cross section AWG
- 26 - 16
- Conductor cross section flexible
- 0.14 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 1.5 mm²
- Connection method
- Screw connection
- Connection name
- Supply
- Number of connections
- 2
- Number of positions
- 2
- Screw thread
- M3
- Stripping length
- 6 mm
Connection data 4
- Connection method
- IDC/FLK pin strip
- Connection name
- Connection for basic module
- Number of connections
- 1
- Number of positions
- 20
- Pitch
- 2.54 mm
Dimensions
- Depth
- 50.5 mm
- Height
- 45 mm
- Width
- 214 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Cadmium oxide 1306-19-0
Input data
- Input voltage range in reference to UN
- 0.8 - 1.1
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Green LED
- Protective circuit/component
- Damping diode
- Polarity protection diode
- Status display/channel
- Yellow LED
- Type of protection
- Reverse polarity protection
- Free-wheeling diode
- Typical input current at UN
- 6.5 mA
- Typical release time
- 15 ms
- Typical response time
- 5 ms
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact material
- AgNi, 5 µm hard gold-plated
- Contact type
- 1 N/O contact
- Interrupting rating (ohmic load) max.
- 72 W (24 V DC)
- 750 VA (250 V AC)
- 50 W (60 V DC)
- 60 W (48 V DC)
- 50 W (110 V DC)
- Limiting continuous current
- 3 A
- Maximum inrush current
- 5 A
- Maximum switching voltage
- 125 V DC
- 250 V AC
- Minimum switching voltage
- 5 V
- Min. switching current
- 1 mA
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 4 kV (basic insulation)
- Standards/regulations
- DIN EN 50178
- IEC 60664
Supported controller
- Controller
- SIEMENS S7-400
- MITSUBISHI MELSEC Q
- MITSUBISHI MELSEC L
- HONEYWELL Experion PKS C200
- Schneider Electric Modicon TSX QUANTUM
- ALLEN-BRADLEY ControlLogix
- GE-FANUC RX3i
- ALLEN-BRADLEY PLC 5
- SIEMENS S7-300 / ET 200 M
- suitable I/O card
- DDO 353
- 1771 OBN
- QY81P
- QY82P
- LY41PT1P
- TC-ODD 321
- 1756-OB32
- IC694MDL754
- LY42PT1P
- 6ES7 422-7BL00-0AB0
- 6ES7 322-1BL00-0AA0
- 6ES7 422-1BL00-0AA0
