Description

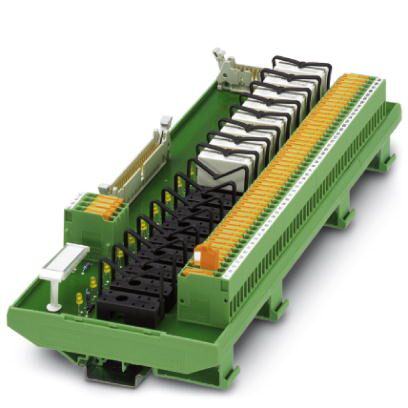

VARIOFACE output module, with plug-in bases for 16 miniature relays, 1 PDT each, for 24 V DC, with knife disconnect terminal blocks in the output (without relays)Active module - UM-16 RELS/KSR-G24/21/MT/PLC - 2962382
Phoenix Contact 2962382 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP00
Connection data
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection with disconnect knife
- Connection name
- Field level
- Number of connections
- 48
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 3
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection with disconnect knife
- Connection name
- Supply
- Number of connections
- 4
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 4
- Connection method
- IDC/FLK pin strip
- Connection name
- Connection for extension module
- Number of connections
- 1
- Number of positions
- 20
- Pitch
- 2.54 mm
Dimensions
- Depth
- 52 mm
- Height
- 112 mm
- Width
- 267 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Green LED
- Protective circuit/component
- Damping diode
- Status display/channel
- Yellow LED
- Type of protection
- Free-wheeling diode
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact type
- 1 PDT
- Interrupting rating (ohmic load) max.
- 120 W (24 V DC, τ = 0 ms)
- 58 W (48 V DC, τ = 0 ms)
- 50 W (110 V DC, τ = 0 ms)
- 1250 VA (250 V AC, τ = 0 ms)
- 48 W (60 V, τ = 0 ms)
- 80 W (220 V DC, τ = 0 ms)
- Limiting continuous current
- 5 A
- Maximum switching voltage
- 250 V AC/DC
- Min. switching current
- 10 mA
- Note
- The interrupting ratings apply when using the REL-MR- 24DC/21HC relay (2961312)
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 4 kV (Basic insulation between output contact current paths)
- 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths)
- Standards/regulations
- IEC 60664
- DIN EN 50178
Supported controller
- Controller
- SIEMENS S7-300 / ET 200 M
- MITSUBISHI MELSEC Q
- HONEYWELL Experion PKS C200
- SIEMENS S7-1500
- MITSUBISHI MELSEC L
- GE-FANUC RX3i
- SIEMENS S7-400
- ALLEN-BRADLEY PLC 5
- Schneider Electric Modicon TSX QUANTUM
- suitable I/O card
- TC-ODD 321
- DDO 353
- 1771 OBN
- 6ES7 522-1BL01-0AB0
- 6ES7 522-1BL00-0AB0
- IC694MDL754
- QY81P
- 6ES7 322-1BL00-0AA0
- LY41PT1P
- 6ES7 422-1BL00-0AA0
- QY82P
- LY42PT1P
- 6ES7 422-7BL00-0AB0
