Phoenix Contact 2962379
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

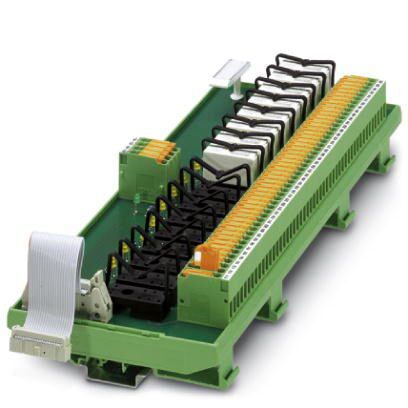

VARIOFACE output extension module, with plug-in bases for 16 miniature relays, 1 PDT each, for 24 V DC, with knife disconnect terminal blocks in the output (without relays)Active module - UM-16 RELS/KSR-G24/21/E/MT/PLC - 2962379
Phoenix Contact 2962379 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP00
Connection data
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 20
- Pitch
- 2.54 mm
Connection data 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection with disconnect knife
- Connection name
- Field level
- Number of connections
- 48
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 3
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection with disconnect knife
- Connection name
- Supply
- Number of connections
- 4
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 4
- Connection method
- IDC/FLK pin strip
- Connection name
- Connection for basic module
- Number of connections
- 1
- Number of positions
- 20
- Pitch
- 2.54 mm
Dimensions
- Depth
- 52 mm
- Height
- 112 mm
- Width
- 267 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Green LED
- Protective circuit/component
- Damping diode
- Status display/channel
- Yellow LED
- Type of protection
- Free-wheeling diode
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact type
- 1 PDT
- Limiting continuous current
- 5 A
- Maximum switching voltage
- 250 V AC/DC
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths)
- 4 kV (Basic insulation between output contact current paths)
- Standards/regulations
- DIN EN 50178
- IEC 60664
Supported controller
- Controller
- ALLEN-BRADLEY PLC 5
- HONEYWELL Experion PKS C200
- MITSUBISHI MELSEC Q
- MITSUBISHI MELSEC L
- SIEMENS S7-1500
- GE-FANUC RX3i
- suitable I/O card
- TC-ODD 321
- LY42PT1P
- IC694MDL754
- 6ES7 522-1BL00-0AB0
- 1771 OBN
- 6ES7 522-1BL01-0AB0
- QY82P
- LY41PT1P
