Phoenix Contact 2959654
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

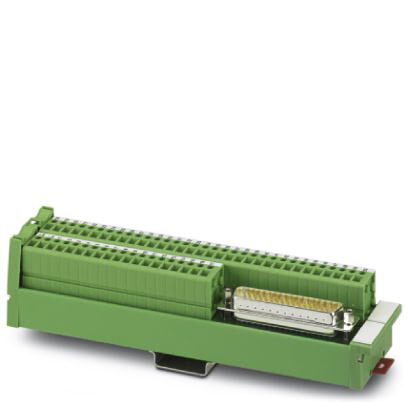

VARIOFACE SLIM LINE, with screw connection and D-subminiature pin strip, for assembly at a right angle on NS 35/7.5, 50 positionsInterface module - UM 45-D50SUB/S/FRONT/Q - 2959654
Phoenix Contact 2959654 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 50 °C
- Ambient temperature (storage/transport)
- -10 °C - 70 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection in acc. with standard
- IEC / EN
- Connection method
- Screw connection
- Connection name
- Field level
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Connection method
- D-SUB pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 50
Dimensions
- Depth
- 47 mm
- Height
- 186 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 125 V
- Rated surge voltage
- 1.2 kV (Functional insulation)
- Standards/regulations
- DIN EN 50178
- IEC 60664
