Description

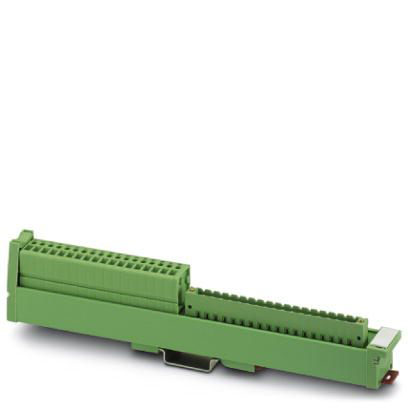

VARIOFACE SLIM LINE, with screw connection and COMBICON header, for assembly at a right angle on NS 35/7.5, 18 positionsInterface module 2959502
Phoenix Contact 2959502 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 50 °C
- Ambient temperature (storage/transport)
- -10 °C - 70 °C
Connection data for connection 1
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection in acc. with standard
- IEC / EN
- Connection method
- Screw connection
- Connection name
- Field level
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data for connection 2
- Connection method
- COMBICON connectors
- Connection name
- Controller level
- Note
- COMBICON headers: 5.0 mm pitch
- Number of connections
- 1
- Number of positions
- 18
Dimensions
- Depth
- 45 mm
- Height
- 217 mm
- Width
- 25 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Degree of pollution
- 2
- Overvoltage category
- II
- Rated insulation voltage
- 250 V
- Rated surge voltage
- 2.2 kV (Functional insulation)
- Standards/regulations
- IEC 60664
- DIN EN 50178
