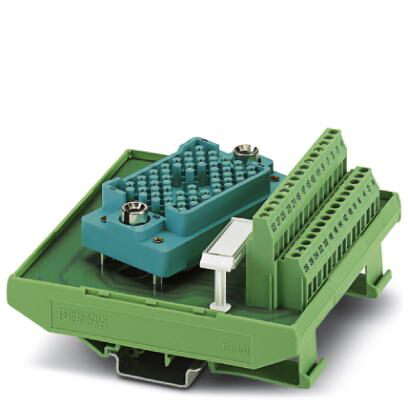

Phoenix Contact 2956712

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • IP20
  • ≥ IP54 (Installation location)
• Maximum altitude
  • ≤ 2000 m

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Field level
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data 2

• Coding
  • 1-1
• Connection method
  • ELCO connector
• Connection name
  • Controller level
• Note
  • Pin strip, Type 8027, left
• Number of connections
  • 1
• Number of positions
  • 28
• Type
  • 8027 series

Dimensions

• Depth
  • 56 mm
• Height
  • 112 mm
• Width
  • 110.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Note

• Note
  • Against adjacent modules in the support rail direction at least one functional insulation on the output-side is complied with. If the application has higher requirements on the insulation (basic insulation or reinforced insulation), then these must be realized through suitable measures (e. g. partition plates).
• Type of note
  • Notes on operation

Standards and Regulations

• Designation
  • Air clearances and creepage distances
• Insulation
  • Functional insulation
• Overvoltage category
  • II
• Pollution degree
  • 2
• Rated insulation voltage
  • 260 V
• Rated surge voltage
  • 2.3 kV
• Standards/regulations
  • DIN EN 50178
