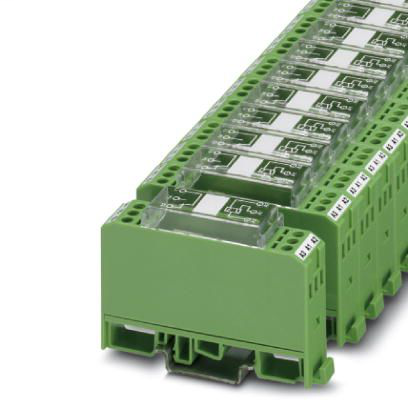

Phoenix Contact 2953935

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 50 °C
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C

Coil side

• Coil voltage
  • 24 V DC
• Input voltage range in reference to U_N
  • 0.8 - 1.1
• Nominal input voltage U_N
  • 48 V DC
• Power dissipation for nominal condition
  • 0.41 W
• Protective circuit
  • Free-wheeling diode Damping diode
  • Reverse polarity protection Polarity protection diode
• Pulse time range
  • 30 ms - 5 s
• Typical input current at U_N
  • typ. 8.5 mA
• Typical release time
  • 5 ms
• Typical response time
  • 5 ms

Connection data input side

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Coil side
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data output side

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Contact side
• Screw thread
  • M3
• Stripping length
  • 8 mm

Contact side

• Contact material
  • AgSnO
• Contact type
  • Single contact, 1-PDT
• Interrupting rating (ohmic load) max.
  • 55 W (at 110 V DC)
  • 43 W (at 48 V DC)
  • 100 W (at 220 V DC)
  • 42 W (at 60 V DC)
  • 1500 VA (for 250 V AC)
  • 144 W (at 24 V DC)
• Limiting continuous current
  • 6 A
• Maximum inrush current
  • 8 A
• Maximum switching voltage
  • 250 V AC/DC
• Minimum switching voltage
  • 24 V (At 1 mA)
  • 5 V (at 100 mA)
• Min. switching current
  • 1 mA (at 24 V)
  • 100 mA (At 5 V)
• Type of switch contact
  • Single contact

Contact side (with destroyed gold layer)

• Interrupting rating (ohmic load) max.
  • 35 W (at 60 V DC)
  • 1250 VA (for 250 V AC)
  • 55 W (at 220 V DC)
  • 40 W (at 48 V DC)
  • 120 W (at 24 V DC)
  • 30 W (at 110 V DC)
• Limiting continuous current
  • 5 A
• Maximum inrush current
  • 6 A
• Maximum switching voltage
  • 250 V AC/DC

Dimensions

• Depth
  • 62.5 mm
• Height
  • 75 mm
• Width
  • 17.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
• REACh SVHC
  • Lead 7439-92-1

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Degree of pollution
  • 2
• Designation
  • Air clearances and creepage distances between the power circuits
• Insulation
  • Safe isolation, reinforced insulation
• Overvoltage category
  • III
• Standards/regulations
  • DIN EN 50178
