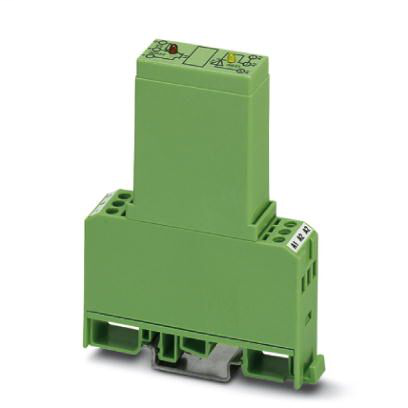

Phoenix Contact 2946793
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Power solid-state relay, with LED and protective circuit in input and output circuits, input: 12 V DC, output: short-circuit-proof, 10 - 30 V DC/max. 2 ASolid-state relay module - EMG 17-OV- 12DC/ 24DC/2 - 2946793
Phoenix Contact 2946793 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Input side
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Output side
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 102 mm
- Height
- 75 mm
- Width
- 17.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input voltage range
- 9.6 V DC - 14.4 V DC
- Input voltage range in reference to UN
- 0.8 - 1.2
- Nominal input voltage UN
- 12 V DC
- Protective circuit/component
- Polarity protection diode
- Varistor
- Status display
- Yellow LED
- Switching threshold "0" signal in reference to UN
- ≤ 0.4
- Switching threshold "1" signal in reference to UN
- ≥ 0.8
- Transmission frequency
- 1000 Hz
- Type of protection
- Surge protection
- Reverse polarity protection
- Typical input current at UN
- 4.6 mA
- Typical response time
- 210 µs
- Typical turn-off time
- 410 µs
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Current limitation at short-circuits
- > 2 A (short-circuit-proof)
- Indication
- Red LED
- Leakage current
- 150 µA
- Limiting continuous current
- 2 A (see derating curve)
- Output circuit
- 3-conductor, ground-referenced
- Output nominal voltage
- 24 V DC
- Output voltage range
- 10 V DC - 30 V DC
- Peak offstate voltage
- 33 V DC (Collector-emitter reverse voltage)
- Protective circuit/component
- Suppressor diode
- Polarity protection diode
- Damping diode
- Type of protection
- Reverse polarity protection
- Free running
- Surge protection
- Voltage drop at max. limiting continuous current
- ≤ 0.3 V
Standards and Regulations
- Insulation
- Basic insulation
- Overvoltage category
- III
- Pollution degree
- 2
- Standards/regulations
- EN 50178
- IEC 60664
