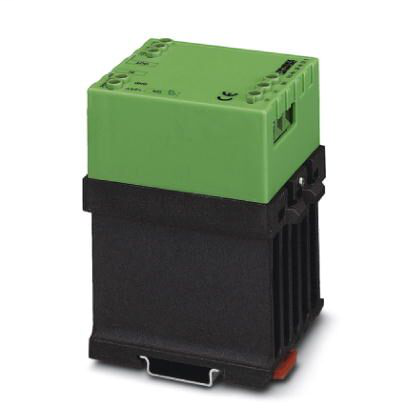

Phoenix Contact 2941714
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Electronic load relay, for direct driving of equipment in the 3-phase network, with light indicator and protection circuit, output: 110-550 V AC/3 x 9 ALoad relay - ELR 3/ 9-500 - 2941714
Phoenix Contact 2941714 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 10
- Conductor cross section flexible
- 0.2 mm² - 4 mm²
- Conductor cross section solid
- 0.2 mm² - 6 mm²
- Connection method
- Screw connection
- Connection name
- Control circuits
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Conductor cross section AWG
- 24 - 10
- Conductor cross section flexible
- 0.2 mm² - 4 mm²
- Conductor cross section solid
- 0.2 mm² - 6 mm²
- Connection method
- Screw connection
- Connection name
- Load circuit
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 110 mm
- Height
- 84 mm
- Width
- 62 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input name
- Control input right/left
- Protective circuit
- Reverse polarity protection Polarity protection diode
- Surge protection
- Rated actuating current IC
- 16 mA
- Rated actuating voltage UC
- 24 V DC
- Reaction time in normal load operation
- 20 ms
- Status display
- Yellow LED
- Transmission frequency
- 1 Hz (At cos φ = 0.5)
- Triggering voltage range
- 19.2 V DC - 28.8 V DC
- Voltage range with reference to UC
- 0.8 - 1.2
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data load output
- Leakage current
- typ. 7 mA
- Load current range
- 150 mA - 9 A (see to derating)
- Operating voltage range
- 110 V AC - 550 V AC
- Output name
- AC output
- Protective circuit/component
- RC element
- Rated operating voltage Ue
- 500 V AC
- Residual voltage
- typ. 1.5 V
- Surge current
- 230 A (tp = 10 ms, at 25 °C)
- Type of protection
- Surge protection
- RC element
Standards and Regulations
- Designation
- EMC regulations
- Power station requirements
- Air clearances and creepage distances between the power circuits
- Insulation
- Basic insulation
- Standards/regulations
- EN 50178
- EN 61000-6-2
- EN 61000-6-4
