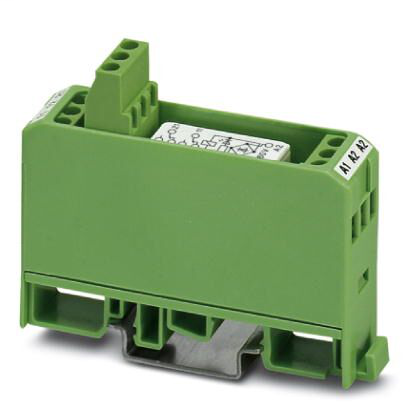

Phoenix Contact 2941442

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 40 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C

Coil side

• Input voltage range in reference to UN
  • 0.8 - 1.1
• Nominal input voltage UN
  • 60 V AC/DC
• Operating voltage display
  • Yellow LED
• Power dissipation for nominal condition
  • 0.48 W
• Protective circuit
  • Bridge rectifier Bridge rectifier
• Typical input current at UN
  • 8 mA
• Typical release time
  • 10 ms
• Typical response time
  • 8 ms

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Coil side
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data 2

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Contact side
• Screw thread
  • M3
• Stripping length
  • 8 mm

Contact side

• Contact material
  • AgNi, hard gold-plated
• Contact type
  • Single contact, 2-PDT
• Interrupting rating (ohmic load) max.
  • 1.2 W (at 24 V DC)
• Limiting continuous current
  • 50 mA
• Maximum inrush current
  • 0.2 A
• Maximum switching voltage
  • 36 V DC
  • 30 V AC
• Type of switch contact
  • Single contact

Contact side (with destroyed gold layer)

• Interrupting rating (ohmic load) max.
  • 60 W (at 60 V DC)
  • 40 W (at 110 V DC)
  • 55 W (at 220 V DC)
  • 120 W (at 24 V DC)
  • 1250 VA (for 250 V AC)
  • 95 W (at 48 V DC)
• Limiting continuous current
  • 5 A
• Maximum inrush current
  • 6 A
• Maximum switching voltage
  • 250 V AC/DC
• Note
  • the following values are applicable if a gold layer is destroyed

Dimensions

• Depth
  • 62.5 mm
• Height
  • 75 mm
• Width
  • 17.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Designation
  • Standards/regulations
  • Air clearances and creepage distances between the power circuits
  • Air clearances and creepage distances between input and contact circuit (or output contact current path)
• Insulation
  • Safe isolation, reinforced insulation
  • Basic insulation
  • Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths
• Overvoltage category
  • III
  • II
• Pollution degree
  • 2
• Rated insulation voltage
  • 260 V AC
• Rated surge voltage
  • 2.3 kV
  • 6 kV
• Standards/regulations
  • EN 61810-1
  • EN 50178
