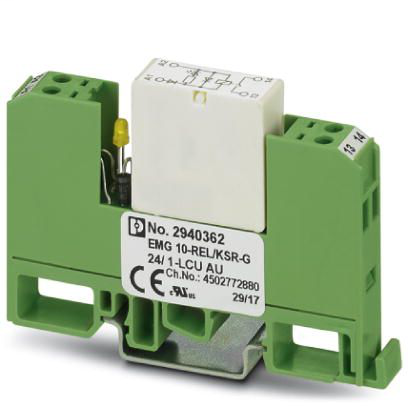

Phoenix Contact 2940362

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 40 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C

Coil side

• Input voltage range in reference to U_N
  • 0.8 - 1.1
• Nominal input voltage U_N
  • 24 V DC
• Operating voltage display
  • Yellow LED
• Power dissipation for nominal condition
  • 0.5 W
• Protective circuit
  • Free-wheeling diode Damping diode
  • Reverse polarity protection Polarity protection diode
• Typical input current at U_N
  • 21 mA
• Typical release time
  • 11 ms
• Typical response time
  • 7 ms

Connection data input side

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Coil side
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data output side

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Contact side
• Screw thread
  • M3
• Stripping length
  • 8 mm

Contact side

• Contact material
  • AgPd60, hard gold-plated
• Contact type
  • Double contact, 1 N/O contact
• Interrupting rating (ohmic load) max.
  • 5 W (at 24 V DC)
• Limiting continuous current
  • 0.5 A
• Maximum inrush current
  • 0.2 A
• Maximum switching voltage
  • 36 V DC
  • 30 V AC
• Type of switch contact
  • Double contact

Contact side (with destroyed gold layer)

• Interrupting rating (ohmic load) max.
  • 29 W (at 24 V DC)
  • 29 W (at 60 V DC)
  • 29 W (at 48 V DC)
• Limiting continuous current
  • 2 A
• Maximum inrush current
  • 2 A
• Maximum switching voltage
  • 150 V DC
  • 125 V AC
• Note
  • the following values are applicable if a gold layer is destroyed

Dimensions

• Depth
  • 53.5 mm
• Height
  • 75 mm
• Width
  • 10.6 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
• REACh SVHC
  • Lead 7439-92-1

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Degree of pollution
  • 2
• Insulation
  • Basic insulation
• Overvoltage category
  • III
• Standards/regulations
  • IEC 60664
  • EN 50178
