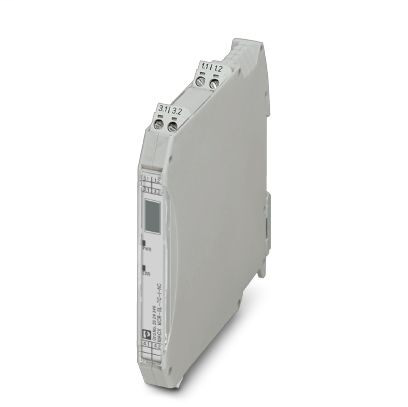

Phoenix Contact 2924346

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 60 °C (Any mounting position)
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP20 (not assessed by UL)
• Maximum altitude
  • ≤ 2000 m
• Noise immunity
  • EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 7 mm
• Torque
  • 0.5 Nm - 0.6 Nm

Dimensions

• Depth
  • 113.7 mm
• Height
  • 106.4 mm
• Width
  • 12.5 mm

EMC data

• Designation
  • Conducted interferences
  • Electromagnetic RF field
  • Fast transients (burst)
• Standards/regulations
  • EN 61000-4-6
  • EN 61000-4-3
  • EN 61000-4-4

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Input data

• Input signal range
  • -20 mV - 70 mV
• Measuring range span
  • Min. 50 K for thermocouples, 3 mV for mV sources
• Sensor types that can be used (TC)
  • E, J, K, N as per IEC / EN 60584, L as per DIN 43760
• Temperature measuring range
  • -250 °C - 1372 °C (Range depending on the sensor type)
• Voltage input signal
  • -20 mV - 70 mV

Output data

• Behavior in the event of a sensor error
  • As per NE 43 or can be freely defined
• Configurable/programmable
  • Yes
  • no
• Current output signal
  • 4 mA - 20 mA
  • 0 mA - 20 mA
• Load/output load current output
  • max. 500 Ω
• Output ripple (current)
  • < 50 µAPP
• Signal output
  • Current output

Power supply

• Max. current consumption
  • < 40 mA (24 V DC)
• Nominal supply voltage
  • 24 V DC
• Power dissipation
  • < 1 W
• Supply voltage range
  • 19.2 V DC - 30 V DC (24 V DC -20%...+25%)

Standards and Regulations

• ATEX
  • II 3G Ex nA ic IIC T4 Gc X
• Conformance
  • CE-compliant, additionally EN 61326-1
• Designation
  • Conducted interferences
  • Electromagnetic RF field
• Electromagnetic compatibility
  • Conformance with EMC directive
• GL
  • C, EMC1
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-6
• UL, USA/Canada
  • Class I, Zone 2, Group IIC T4
  • UL 61010 Listed
  • UL 508 Listed
  • Class I, Div. 2, Groups A, B, C, D T4
