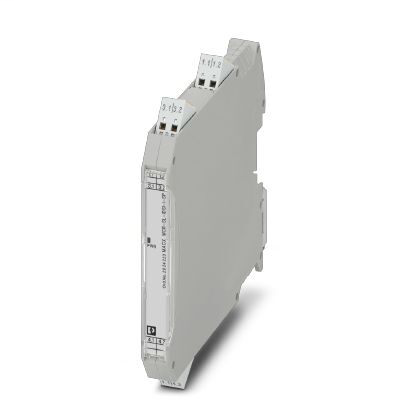

Phoenix Contact 2924223
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Output signal conditioner, HART. Isolates and transmits 0/4 - 20 mA signals to a load (I/P converters, regulating valves, displays). Open-circuit detection, SIL 2 in accordance with IEC 61508, Push-in connection. Replacement item: 2908064 MACX MCR-IDS-I-I-SP.Output signal conditioner - MACX MCR-SL-IDSI-I-SP - 2924223
Phoenix Contact 2924223 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C (Any mounting position)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20 (not assessed by UL)
- Maximum altitude
- ≤ 2000 m
- Noise immunity
- EN 61000-6-2
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
Connection data
- Conductor cross section AWG
- 24 - 16
- Conductor cross section flexible
- 0.2 mm² - 1.5 mm²
- Conductor cross section solid
- 0.2 mm² - 1.5 mm²
- Connection method
- Push-in connection
- Stripping length
- 8 mm
Data communication (bypass)
- HART function
- Yes
- Protocols supported
- HART
Dimensions
- Depth
- 113.7 mm
- Height
- 116.9 mm
- Width
- 12.5 mm
EMC data
- Designation
- Electromagnetic RF field
- Standards/regulations
- EN 61000-4-3
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Current input signal
- 4 mA - 20 mA
- 0 mA - 20 mA
- Input impedance
- > 100 kΩ (If there is a line fault)
- Voltage drop
- 5.4 V (20 mA)
Output data
- Current output signal
- 0 mA - 20 mA
- 4 mA - 20 mA
- Load/output load current output
- < 800 Ω (20 mA)
- < 730 Ω (22.5 mA)
- Output ripple
- < 20 mVrms
- Signal output
- Current output
- Transmission Behavior
- 1:1 to input signal
Power supply
- Max. current consumption
- < 46 mA (24 V DC / 20 mA)
- Nominal supply voltage
- 24 V DC
- Power dissipation
- < 1.1 W (24 V DC / 20 mA)
- Supply voltage range
- 19.2 V DC - 30 V DC (24 V DC -20%...+25%)
Safety characteristic data
- Diagnostic coverage (DC)
- DCS=0 %, DCD=0 %
- Equipment type
- Type A
- Integrity requirement
- IEC 61508 - Low demand
- IEC 61508 - High demand
- Probability of a hazardous failure on demand (PFDAVG)
- 1.22 x 10-⁴ (1 year)
- 6.1 x 10-⁴ (5 years)
- 12.2 x 10-⁴ (10 years)
- Probability of a hazardous failure per hour (PFHD)
- 2,79 x 10-⁸
- Safe Failure Fraction (SFF)
- 94.68 %
- Safety Integrity Level (SIL)
- 2
- λDD
- 0
- λDU
- 2.79 x 10-⁸ (27.9 FIT)
- λSD
- 0
- λSU
- 4.965 x 10-⁷ (496.5 FIT)
Standards and Regulations
- ATEX
- II 3 G Ex nA IIC T4 Gc X
- Conformance
- CE-compliant, additionally EN 61326-1
- Designation
- Electromagnetic RF field
- Electromagnetic compatibility
- Conformance with EMC directive
- GL
- C, EMC1
- Noise emission
- EN 61000-6-4
- Standards/regulations
- EN 61000-4-3
- UL, USA/Canada
- UL 508 Listed
- Class I, Div. 2, Groups A, B, C, D T4
- UL 61010 Listed
- Class I, Zone 2, Group IIC T4
