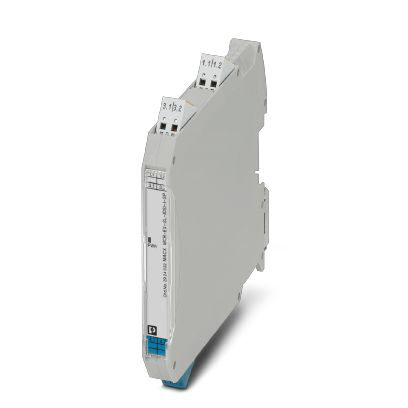

Phoenix Contact 2924032

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 60 °C (Any mounting position)
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP20 (not assessed by UL)
• Maximum altitude
  • ≤ 2000 m
• Noise immunity
  • EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
• Permissible humidity (operation)
  • 10 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG
  • 24 - 16
• Conductor cross section flexible
  • 0.2 mm² - 1.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 1.5 mm²
• Connection method
  • Push-in connection
• Stripping length
  • 8 mm

Data communication (bypass)

• HART function
  • Yes
• Protocols supported
  • HART

Dimensions

• Depth
  • 113.7 mm
• Height
  • 116.9 mm
• Width
  • 12.5 mm

EMC data

• Designation
  • Fast transients (burst)
  • Electromagnetic RF field
  • Conducted interferences
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-6
  • EN 61000-4-4
• Typical deviation from the measuring range final value
  • 1 %

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• Current input signal
  • 0 mA - 20 mA
  • 4 mA - 20 mA
• Input impedance
  • > 100 kΩ (If there is a line fault)
• Voltage drop
  • 5.4 V (20 mA)

Output data

• Current output signal
  • 4 mA - 20 mA (intrinsically safe)
  • 0 mA - 20 mA (intrinsically safe)
• Load/output load current output
  • < 800 Ω (20 mA)
  • < 730 Ω (22.5 mA)
• Output ripple
  • < 20 mVrms
• Signal output
  • Current output
• Transmission Behavior
  • 1:1 to input signal

Power supply

• Max. current consumption
  • < 46 mA (at 24 V DC / 20 mA)
• Nominal supply voltage
  • 24 V DC
• Power dissipation
  • < 1.1 W (at 24 V DC / 20 mA)
• Supply voltage range
  • 19.2 V DC - 30 V DC (24 V DC -20%...+25%)

Safety characteristic data

• Diagnostic coverage (DC)
  • DCS=0 %, DCD=0 %
• Equipment type
  • Type A
• Integrity requirement
  • IEC 61508 - Low demand
  • IEC 61508 - High demand
• Probability of a hazardous failure on demand (PFDAVG)
  • 1.22 x 10-⁴ (1 year)
  • 6.1 x 10-⁴ (5 years)
  • 12.2 x 10-⁴ (10 years)
• Probability of a hazardous failure per hour (PFHD)
  • 2,79 x 10-⁸
• Safe Failure Fraction (SFF)
  • 94.68 %
• Safety Integrity Level (SIL)
  • 2
• λDD
  • 0
• λDU
  • 2.79 x 10-⁸ (27.9 FIT)
• λSD
  • 0
• λSU
  • 4.965 x 10-⁷ (496.5 FIT)

Safety data

• Group
  • IIC
  • IIB
• Max. external capacitance Co
  • 85 nF
  • 663 nF
• Max. external inductivity Lo
  • 2 mH
  • 4 mH
• Max. output current Io
  • 92 mA
• Max. output power Po
  • 633 mW
• Max. output voltage Uo
  • 27.7 V
• Safety-related maximum voltage Um
  • 253 V AC (125 V DC)

Standards and Regulations

• ATEX
  • II (1) D [Ex ia Da] IIIC
  • II (1) G [Ex ia Ga] IIC/IIB
  • II 3(1) G Ex nA [ia Ga] IIC/IIB T4 Gc
• Conformance
  • CE-compliant, additionally EN 61326
• Designation
  • Electromagnetic RF field
  • Conducted interferences
• DNV GL-EMC
  • B
• DNV GL-Enclosure
  • Required protection according to the Rules shall be provided upon installation on board
• DNV GL-Humidity
  • B
• DNV GL-Temperature
  • B
• DNV GL-Vibration
  • A
• Electromagnetic compatibility
  • Conformance with EMC directive
• Group
  • IIC
  • IIB
• IECEx
  • [Ex ia Da] IIIC
  • Ex nA [ia Ga] IIC/IIB T4 Gc
  • [Ex ia Ga] IIC/IIB
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-6
  • EN 61000-4-4
• UL, USA/Canada
  • Class I Div 2; IS for Class I, II, III Div 1
