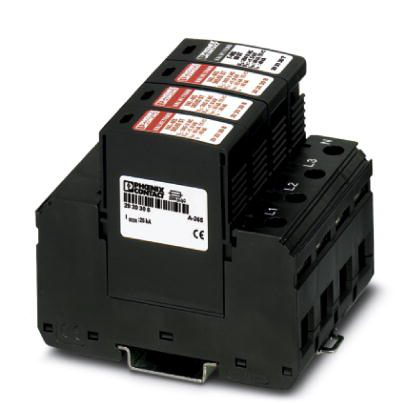

Phoenix Contact 2920890
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Type 2 surge arrester for 5-wire power supply systems (L1, L2, L3, N, PE), with connector latching.Type 2 surge arrester 2920890
Phoenix Contact 2920890 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20 (only when all terminal points are used)
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 7.5g (10 - 500 Hz / 2.5 h / X, Y, Z)
Connection data
- Conductor cross section AWG
- 15 - 2
- Conductor cross section flexible
- 1.5 mm² - 16 mm²
- 1.5 mm² - 25 mm²
- Conductor cross section solid
- 1.5 mm² - 35 mm²
- Connection method
- Screw connection
- Fork-type cable lug
- Screw thread
- M5
- Stripping length
- 16 mm
- Tightening torque
- 4.5 Nm (25 mm² - 35 mm²)
- 3 Nm (1,5 mm² - 16 mm²)
Dimensions
- Depth
- 77.5 mm (incl. DIN rail 7.5 mm)
- Height
- 89.8 mm
- Horizontal pitch
- 4 Div.
- Width
- 71.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Protective circuit
- Follow current interrupt rating Ifi (N-PE)
- 100 A
- Impulse discharge current (10/350) µs (L-N), charge
- 1.25 As
- Impulse discharge current (10/350) µs (L-N), peak current value Iimp
- 2.5 kA
- Impulse discharge current (10/350) µs (L-N), specific energy
- 1.56 kJ/Ω
- Impulse discharge current (10/350) µs (L-PE), charge
- 1.25 As
- Impulse discharge current (10/350) µs (L-PE), peak current value Iimp
- 2.5 kA
- Impulse discharge current (10/350) µs (L-PE), specific energy
- 1.56 kJ/Ω
- Impulse discharge current (10/350) µs (N-PE), charge
- 5 As
- Impulse discharge current (10/350) µs (N-PE), peak current value Iimp
- 10 kA
- Impulse discharge current (10/350) µs (N-PE), specific energy
- 25 kJ/Ω
- Max. backup fuse with branch wiring
- 250 A (gG)
- Max. backup fuse with V-type through wiring
- 80 A (gG - 16 mm²)
- Maximum continuous operating voltage UC (L-N)
- 385 V AC
- Maximum continuous operating voltage UC (L-PE)
- 385 V AC
- Maximum continuous voltage UC (N-PE)
- 264 V AC
- Maximum discharge current Imax (8/20) µs (L-N)
- 65 kA
- Maximum discharge current Imax (8/20) µs (L-PE)
- 65 kA
- Maximum discharge current Imax (8/20) µs (N-PE)
- 80 kA
- Nominal discharge current In (8/20) µs (L-N)
- 30 kA
- Nominal discharge current In (8/20) µs (L-PE)
- 30 kA
- Nominal discharge current In (8/20) µs (N-PE)
- 40 kA
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 240/415 V AC (TT)
- 240/415 V AC (TN-S)
- Rated load current IL
- 80 A
- Residual current IPE
- ≤ 5 µA
- Residual voltage Ures (L-N)
- ≤ 1.8 kV (at In)
- ≤ 1.2 kV (at 3 kA)
- ≤ 1.4 kV (at 10 kA)
- ≤ 1.25 kV (at 5 kA)
- Residual voltage Ures (L-PE)
- ≤ 2 kV (at In)
- ≤ 1.5 kV (at 10 kA)
- ≤ 1.4 kV (at 5 kA)
- ≤ 1.3 kV (at 3 kA)
- Residual voltage Ures (N-PE)
- ≤ 0.5 kV (at 10 kA)
- ≤ 0.6 kV (at In)
- ≤ 0.4 kV (at 3 kA)
- ≤ 0.5 kV (at 5 kA)
- Response time tA (L-N)
- ≤ 25 ns
- Response time tA (L-PE)
- ≤ 100 ns
- Response time tA (N-PE)
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 25 kA
- Standby power consumption PC
- ≤ 690 mVA
- Total discharge current Itotal (10/350) µs
- 10 kA
- Total discharge current Itotal (8/20) µs
- 80 kA
- TOV behavior at UT (L-N)
- 480 V AC (5 s / withstand mode)
- TOV behavior at UT (N-PE)
- 1200 V AC (200 ms / withstand mode)
- Voltage protection level Up (L-N)
- ≤ 1.8 kV
- Voltage protection level Up (L-PE)
- ≤ 2 kV
- Voltage protection level Up (N-PE)
- ≤ 1.7 kV
Standards and Regulations
- Standards/regulations
- IEC 61643-11 2011
- EN 61643-11 2012
