Description

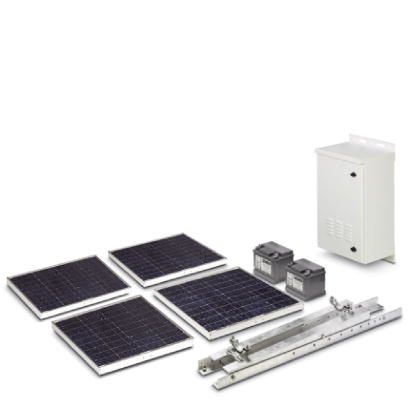

24 V / 200 Wp solar system for worldwide use. Consisting of a solar panel, prewired control cabinet with charge controller, solar battery, fuses, surge protection and assembly material (including mast clips).Solar system 2917722
Phoenix Contact 2917722 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- 0 °C - 20 °C
Charge controller
- Acid gel battery
- 28.2 V DC
- Connecting load
- 25.2 V DC
- Current consumption
- < 8 mA
- Disconnecting load
- 23 V DC
- Nominal load
- 10 A
- Short-circuit current
- 12.5 A
- Solar input current
- 10 A
- Solar input voltage
- < 60 V
- System voltage
- 24 V DC
- Temperature compensation
- -60 mV/K
Control cabinet / System
- Depth
- 332 mm
- Height
- 760 mm
- Housing material
- Aluminum
- Max. load
- 0 W - 20 W (Maximum connected load for year-round constant load according to power reserve and installation location)
- Net weight
- 81 kg
- Snow load
- 0.85 kN (per m² corresponds to snow load zone 2)
- System voltage
- 24 V DC
- Width
- 500 mm
- Wind velocity
- 25 m/s (per m² corresponds to wind load zone 2, at a force of 0.39 kN)
Dimensions
- Depth
- 332 mm
- Height
- 760 mm
- Width
- 500 mm
Solar battery
- Depth
- 306 mm
- Height
- 213 mm
- Net weight
- 32 kg
- Nominal capacity
- 100 Ah
- Nom. voltage
- 12 V DC
- Width
- 168 mm
Solar panel
- Current
- 2.75 A (Current at maximum output)
- Depth
- 34 mm
- Height
- 572 mm
- Nominal capacity
- ≥ 50 Wp
- Short-circuit current
- ≤ 2.95 A
- Voltage
- typ. 18.1 V DC (voltage at maximum output)
- Width
- 680 mm
