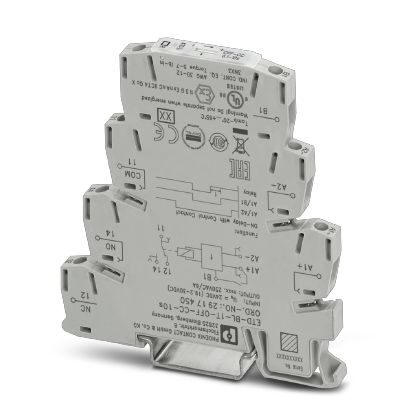

Phoenix Contact 2917450

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 65 °C
• Ambient temperature (storage/transport)
  • -25 °C - 80 °C
• Degree of protection
  • IP20
• Noise immunity
  • When being exposed to interference, there may be minimal deviations.
  • EN 61000-6-2
• Permissible humidity (operation)
  • 15 % - 85 %

Coil side

• Function
  • OFF-CC: Off delay with control contact
• Input voltage range
  • 24 V DC (19.2 V DC ...30 V DC)
• Setting range time
  • 0.1 s - 10 s

Connection data

• Conductor cross section AWG
  • 30 - 12
• Conductor cross section flexible
  • 0.14 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.14 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Stripping length
  • 8 mm
• Torque
  • 0.6 Nm - 0.8 Nm
  • 5 lbf-in. - 7 lbf-in.

Contact side

• Contact type
  • 1 floating PDT
• Output fuse
  • 6.3 A (fast-blow)

Control contact

• Connection name
  • Non-floating, terminals A1-B1
• Control pulse length
  • min. 50 ms

Dimensions

• Depth
  • 86 mm
• Height
  • 80 mm
• Width
  • 6.2 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Standards and Regulations

• Electromagnetic compatibility
  • Conformance with EMC Directive 2004/108/EC
• Insulation
  • Safe isolation
• Low Voltage Directive
  • Conformance with LV directive 2006/95/EC
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2
• Overvoltage category
  • III
• Pollution degree
  • 2
• Rated insulation voltage
  • 300 V AC
• Rated surge voltage
  • 6 kV
• Standards/regulations
  • EN 50178
