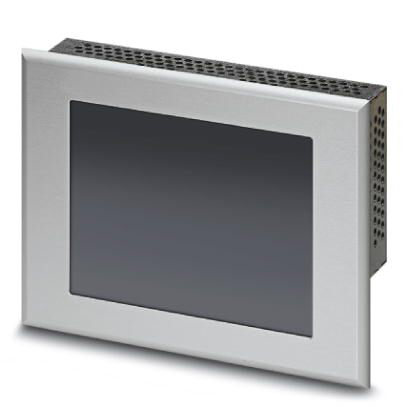

Phoenix Contact 2913645

Ambient conditions

• Ambient temperature (operation)
  • 0 °C - 50 °C
• Ambient temperature (storage/transport)
  • -25 °C - 70 °C
• Degree of protection
  • NEMA 4X
  • IP65 (front), IP20 (back)
• Permissible humidity (operation)
  • 20 % - 85 % (non-condensing)
• Permissible humidity (storage/transport)
  • 10 % - 95 % (non-condensing)
• Shock
  • DIN EN 60068-2-27
• Vibration (operation)
  • DIN EN 60068-2-6

Computer data

• Bus system
  • without
• Interfaces
  • 2x USB Host 2.0
• Mass storage
  • Flash, 32 MB
• Network
  • 1 x Ethernet (10/100 Mbps), RJ45
• Operating system
  • Windows® CE 5.0
• Processor
  • Arm9™, 200 MHz
• RAM
  • 64 MB SDRAM
• User software
  • MicroBrowser

Device supply

• Power supply unit
  • 24 V DC ±20 %
• Typical current consumption
  • 0.4 A

Dimensions

• Installation dimensions: width, height, depth
  • 160 mm x 118 mm x 42 mm
• Outer dimensions: width, height, depth
  • 168 mm x 126 mm x 5 mm (Dimensions of the front plate)

Display

• Backlighting
  • LED
• Brightness
  • 400 cd/m², typical (adjustable)
• Colors
  • 65536 colors
• Display
  • 14.5 cm/5.7" TFT active
• Display backlight MTBF
  • 40000 h
• Screen resolution
  • 320 x 240 Pixel(s) (QVGA)
• Touch technology
  • analog resistive (polyester)

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 15;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Shock
  • DIN EN 60068-2-27
• Vibration (operation)
  • DIN EN 60068-2-6
