Phoenix Contact 2913020
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

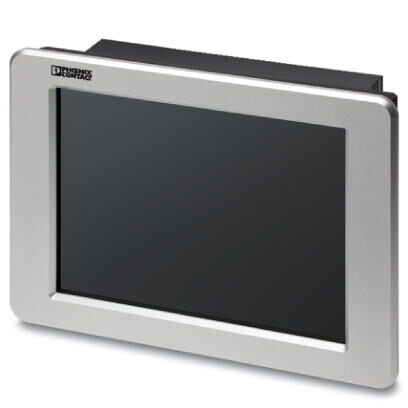

17"/43 cm flat panel LCD monitor with resistive touch screen. Includes two rear USB ports and one front USB port.Monitor - VL FPM 17U - 2913020
Phoenix Contact 2913020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
- Degree of protection
- IP65 (front), IP20 (back)
- Permissible humidity (operation)
- 5 % - 95 %
- Permissible humidity (storage/transport)
- 5 % - 95 %
- Shock
- 15g, 11 ms in accordance with IEC 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Device supply
- Power supply unit
- 24 V DC ±20 %
- Supply voltage
- 24 V DC (typical)
- Supply voltage range
- 19.2 V DC - 28.8 V DC
Dimensions
- Installation dimensions: width, height, depth
- 424 mm x 329.5 mm (Panel cutout)
- Outer dimensions: width, height, depth
- 452 mm x 356.5 mm x 50 mm (Includes bezel)
Display
- Backlighting
- CCFL
- Brightness
- 350 cd/m², typical (adjustable)
- Colors
- 16.7 million colors
- Display
- 43,2 cm / 17"-TFT
- Display backlight MTBF
- > 50000 h
- Screen resolution
- 1280 x 1024 Pixel(s) (SXGA)
- Touch technology
- analog resistive (polyester)
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Monitor data
- Interfaces
- 1x USB 1.1, Typ A
- 1x USB 2.0, Typ A
- 1x USB on front
- Monitor output
- 1x DVI-D
- 1x VGA
- Network
- Without network
- Optical drive
- without drive
- Slots
- without slots
Standards and Regulations
- Shock
- 15g, 11 ms in accordance with IEC 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
