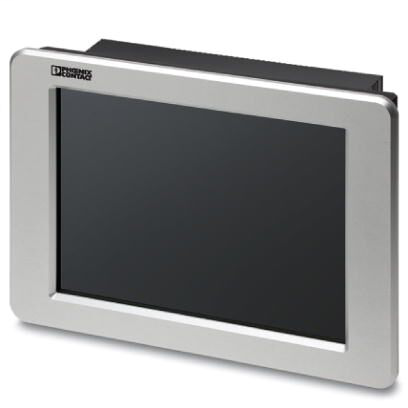

Phoenix Contact 2913015

Ambient conditions

• Ambient temperature (operation)
  • 0 °C - 55 °C
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C
• Degree of protection
  • IP65 (front), IP20 (back)
• Permissible humidity (operation)
  • 5 % - 95 %
• Permissible humidity (storage/transport)
  • 5 % - 95 %
• Shock
  • 15g, 11 ms in accordance with IEC 60068-2-27
• Vibration (operation)
  • DIN EN 60068-2-6

Device supply

• Power supply unit
  • 24 V DC ±20 %
• Supply voltage
  • 24 V DC (typical)
• Supply voltage range
  • 19.2 V DC - 28.8 V DC

Display

• Backlighting
  • CCFL
• Brightness
  • 400 cd/m², typical (adjustable)
• Colors
  • 16.2 million colors
• Display
  • 30.7 cm/12.1" TFT
• Display backlight MTBF
  • > 50000 h
• Screen resolution
  • 800 x 600 Pixel(s) (SVGA)
• Touch technology
  • analog resistive (polyester)

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Monitor data

• Interfaces
  • 1x USB 2.0, Typ A
  • 1x USB 1.1, Typ A
• Monitor output
  • 1x VGA
  • 1x DVI-D
• Network
  • Without network
• Slots
  • without slots

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Shock
  • 15g, 11 ms in accordance with IEC 60068-2-27
• Vibration (operation)
  • DIN EN 60068-2-6
