Description

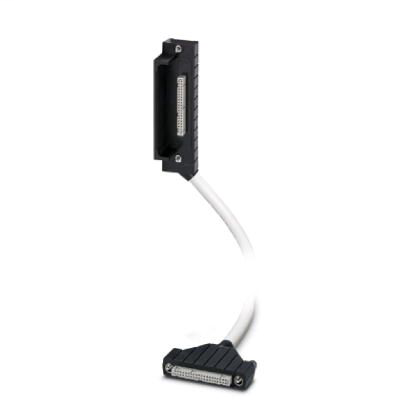

Sealed front adapter with punched-on round cable and molded 40-pos. socket strip at both ends for connecting Yokogawa controllers. Cable length: 22.0 mFront adapters - FLK 40-PA/EZ-DR/KS/2200/YUC - 2909605
Phoenix Contact 2909605 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20
- ≥ IP54 (Installation location)
- Maximum altitude
- ≤ 2000 m
Cable
- Cable insulation resistance
- ≥ 20 MΩ/km (at 20 °C)
- Cable resistance
- ≤ 145 Ω/km (at 20 °C)
- Conductor construction: Number of litz wires:
- 7
- External sheath, color
- gray
- Halogen-free cable
- No
- Length of cable
- 22 m
- Outer sheath, material
- Semi-rigid PVC
- Shielding
- yes
- Single wire, cross section
- 0.14 mm²
- Single wire, material
- Cu tin-plated
Connection data
- Connection method
- Yokogawa, I/O cards compatible
- Connection name
- Control side
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 40
- Torque
- 0.5 Nm (Screw connection)
Connection data 2
- Connection method
- Yokogawa, KS compatible
- Connection name
- Module side
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 40
- Torque
- 0.5 Nm (Screw connection)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Note
- Note
- No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
- Type of note
- Notes on operation
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Flame resistance
- IEC 60332-1-2
- UL VW-1
- VDE 0842, Part 332-1-2
- IEC 60332-3-22
- CSA FT-1
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- YOKOGAWA STARDOM
- YOKOGAWA CS3000 CentumVP
- suitable I/O card
- AAI543
- AAI141
- NFAI835
- NFAB841
- NFAV141
- NFAI135
- NFAI543
- AAI143
- NFAI841
- AAB841
- AAI841
- AAR181
- AAI135
- AAV141
- AAT141
- AAV142
- NFAV542
- NFAI143
- NFAI141
- NFAV142
- AAI835
- AAV542
