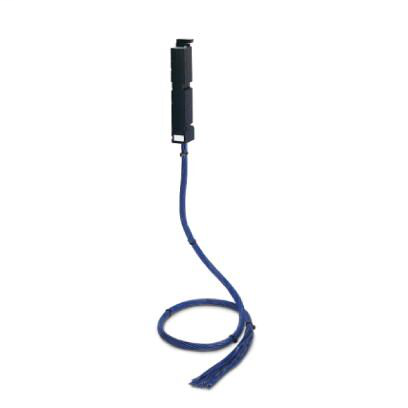

Phoenix Contact 2908914
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VIP power cabling, universal front adapter with halogen-free insulation, for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20 individual wires in rope structure, not assembled (field connection, e.g., via 20 terminal blocks), cable length: 3 mFront adapters - VIP-PA-PWR/20XOE/HF/ 3,0M/S7 - 2908914
Phoenix Contact 2908914 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -20 °C - 80 °C
- Degree of protection
- IP20
Cable
- Conductor construction: Number of litz wires:
- 16
- External diameter
- 9 mm
- Length of cable
- 3 m
- Max. conductor resistance
- ≤ 39 Ω/km
- Single wire, cross section
- 0.5 mm²
- Single wire, material
- Cu uninsulated
Connection data
- Connection method
- Plug connection
- Connection name
- Controller level
- Note
- Can be plugged onto 20-pos. I/O modules
Connection data 2
- Connection method
- open cable end
- Connection name
- Field level
- Number of connections
- 20
- Number of positions
- 1
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Flame resistance
- IEC 60332-1-2
- Overvoltage category
- II
- Rated insulation voltage
- 260 V
- Rated surge voltage
- 2.3 kV (basic insulation)
- Standards/regulations
- DIN EN 50178
- IEC 60664
Supported controller
- Controller
- SIEMENS S7-300 / ET 200 M
- suitable I/O card
- 6ES7 321-7BH01-0AB0
- 6ES7 321-1BH50-0AA0
- 6ES7 322-1BH01-0AA0
- 6ES7 332-7ND02-0AB0
- 6ES7 321-1BH10-0AA0
- 6ES7 322-1FF01-0AA0
- 6ES7 322-8BF00-0AB0
- 6ES7 331-7KF02-0AB0
- 6ES7 321-1BH02-0AA0
- 6ES7 321-1CH20-0AA0
- 6ES7 322-1BF01-0AA0
- 6ES7 322-1HF01-0AA0
- 6ES7 331-7TF01-0AB0
- 6ES7 327-1BH00-0AB0
- 6ES7 322-1FH00-0AA0
- 6ES7 331-7KB02-0AB0
- 6ES7 332-5HD01-0AB0
- 6ES7 321-1FH00-0AA0
- 6ES7 322-1BH10-0AA0
- 6ES7 336-4GE00-0AB0
- 6ES7 334-0CE01-0AA0
- 6ES7 322-1FL00-0AA0
- 6ES7 334-0KE00-0AB0
- 6ES7 323-1BH01-0AA0
- 6ES7 332-5HB01-0AB0
- 6ES7 322-1HH01-0AA0
- 6ES7 332-8TF01-0AB0
- 6ES7 321-1FF01-0AA0
- 6ES7 322-1CF00-0AA0
- 6ES7 331-7HF01-0AB0
