Phoenix Contact 2908183
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

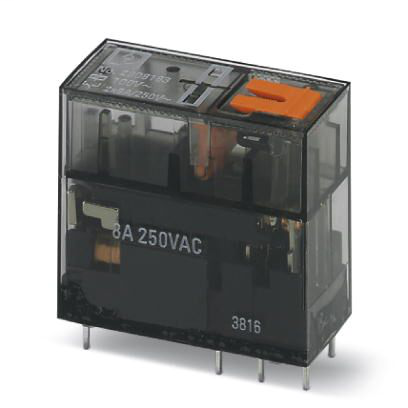

Plug-in miniature relay, with power contact, 2 changeover contacts, test button, mechanical switch position indicator, polarity: bipolar, input voltage: 100 V ACSingle relay - REL-MR-BL-100AC/21-21/MS - 2908183
Phoenix Contact 2908183 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- RT II
Coil side
- Input voltage range in reference to UN
- 0.8 - 1.35 (see diagram)
- Mains frequency
- 50/60 Hz
- Nominal input voltage UN
- 100 V AC
- Power dissipation for nominal condition
- 0.8 W
- Status display
- Yellow LED
- Typical input current at UN
- 8 mA
- Typical release time range
- 2 ms - 8 ms (depending on phase relation)
- Typical response time
- 3 ms - 12 ms (depending on phase relation)
Connection data
- Connection method
- Solder connection
Contact side
- Contact material
- AgNi
- Contact type
- 2 PDT
- Interrupting rating (ohmic load) max.
- 62 W (at 48 V DC)
- 192 W (at 24 V DC)
- 55 W (at 110 V DC)
- 42 W (at 60 V DC)
- 66 W (at 220 V DC)
- Limiting continuous current
- 8 A
- Maximum inrush current
- 16 A (20 ms)
- Maximum switching voltage
- 250 V AC/DC
- Minimum switching voltage
- 12 V (at 10 mA)
- Min. switching current
- 10 mA (at 12 V)
- Type of switch contact
- Single contact
Dimensions
- Depth
- 25.5 mm
- Height
- 29 mm
- Width
- 13 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 250 V AC
- Standards/regulations
- IEC 60664
- IEC 61810
