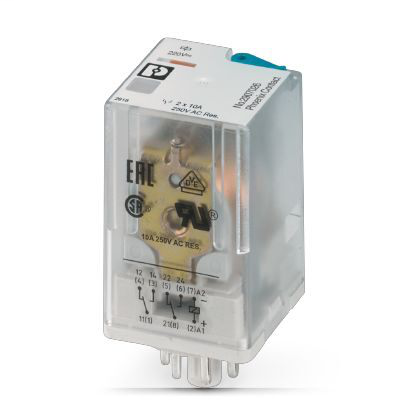

Phoenix Contact 2907026

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • RT I

Coil side

• Input voltage range in reference to UN
  • see diagram
• Nominal input voltage UN
  • 220 V DC
• Power dissipation for nominal condition
  • 1.76 W
• Protective circuit
  • Damping diode
• Status display
  • Yellow LED
• Typical input current at UN
  • 8 mA
• Typical release time
  • 7 ms
• Typical response time
  • 18 ms

Connection data

• Connection method
  • Plug connection

Contact side

• Contact material
  • AgNi
• Contact type
  • 2 PDT
• Interrupting rating (ohmic load) max.
  • 48 W (at 220 V DC)
  • 2500 VA (for 250 V AC)
  • 240 W (at 24 V DC)
  • 52 W (at 110 V DC)
  • 108 W (at 60 V DC)
  • 124 W (at 48 V DC)
• Limiting continuous current
  • 10 A
• Maximum inrush current
  • 30 A (20 ms, N/O contacts)
• Maximum switching voltage
  • 250 V AC/DC
• Minimum switching voltage
  • 10 V (At 24 mA)
• Min. switching current
  • 10 mA (at 24 V)
• Switching capacity
  • 2 A (at 24 V, DC13)
  • 1.5 A (at 230 V, AC15)
• Switching capacity min.
  • 0.24 W
• Type of switch contact
  • Single contact

Dimensions

• Depth
  • 54.4 mm
• Height
  • 35 mm
• Width
  • 35 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years

Standards and Regulations

• Insulation
  • Basic insulation
• Overvoltage category
  • III
• Pollution degree
  • 3
• Rated insulation voltage
  • 250 V AC
• Rated surge voltage
  • 4 kV
• Standards/regulations
  • IEC 61810
  • IEC 60664
