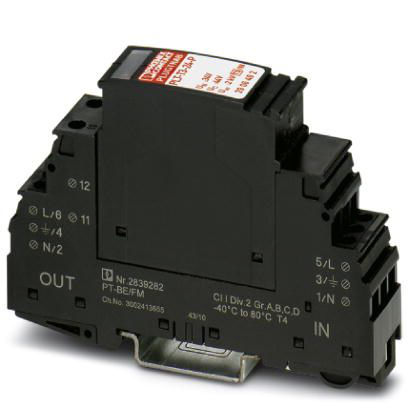

Phoenix Contact 2906486
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Pluggable device protection, according to type 3/Class III, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE) with remote indication contact.Type 3 surge protection device 2906486
Phoenix Contact 2906486 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- PLT-T3-24-FM must not be used in DC applications with grounded positive pole.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 %
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque
- 0.8 Nm
Dimensions
- Depth
- 65.5 mm
- Height
- 90 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.7 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Indicator/remote signaling
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Operating current
- 1 A DC (30 V DC)
- 3 A AC
- Operating voltage
- 125 V DC (200 mA DC)
- 250 V AC
- Screw thread
- M3
- Stripping length
- 8 mm
- Switching function
- N/C contact
- Tightening torque
- 0.8 Nm
Protective circuit
- Combination wave UOC
- 2 kV
- Max. backup fuse with branch wiring
- 16 A AC (B)
- 10 A DC (gG)
- 10 A DC (B)
- Maximum backup fuse for through wiring
- 10 A DC (B)
- 16 A AC (B)
- 10 A DC (gG)
- Maximum continuous voltage UC
- 44 V DC
- 34 V AC
- Nominal discharge current In (8/20) µs
- 1 kA
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 24 V AC (TN-S)
- Rated load current IL
- 16 A AC (at 63 °C)
- 10 A DC
- Reference test voltage UREF
- 27 V AC
- Residual current IPE
- ≤ 5 µA
- Response time tA (L-N)
- ≤ 25 ns
- Response time tA (L-PE)
- ≤ 100 ns
- Response time tA (N-PE)
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 1.5 kA AC
- 1 kA DC
- Standby power consumption PC
- ≤ 60 mVA
- TOV behavior at UT (L-N)
- 36 V AC (5 s / withstand mode)
- TOV behavior at UT (L-PE)
- 42 V AC (5 s / withstand mode)
- Voltage protection level Up (L-N)
- ≤ 0.18 kV
- Voltage protection level Up (L-PE)
- ≤ 0.55 kV
- Voltage protection level Up (N-PE)
- ≤ 0.55 kV
Standards and Regulations
- Standards/specifications
- EN 61643-11 2012
UL connection data
- Conductor cross section AWG
- 14 - 12
- Tightening torque
- 5 lbf-in. - 7 lbf-in.
UL indicator/remote signaling
- Conductor cross section AWG
- 14 - 12
- Tightening torque
- 5 lbf-in. - 7 lbf-in.
UL specifications
- Maximum continuous operating voltage MCOV
- 34 V DC
- 34 V AC
- Measured limiting voltage MLV (L+) - G
- 600 V
- Measured limiting voltage MLV (L-) - G
- 600 V
- Measured limiting voltage MLV (L-G)
- 600 V
- Measured limiting voltage MLV (L+) - (L-)
- 330 V
- Measured limiting voltage MLV (L-N)
- 330 V
- Measured limiting voltage MLV (N-G)
- 600 V
- Mode of protection
- (L+) - (L-)
- L-G
- (L-) - G
- (L+) - G
- N-G
- L-N
- Nominal discharge current In
- 1 kA
- Nominal frequency
- 50/60 Hz
- Nominal voltage
- 24 V DC
- Power distribution system
- Single phase
- Rated load current IL
- 20 A
- SPD Type
- 4CA
