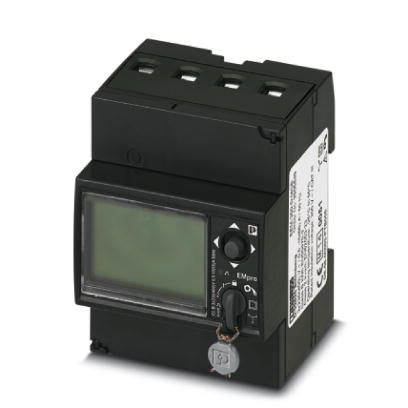

Phoenix Contact 2905849
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Three-phase energy meter for real power measurement in networks up to 460 V / 65 A, with 3 digital inputs and RS-485 interface, certified according to the MID directiveMeasuring instrument 2905849
Phoenix Contact 2905849 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -30 °C - 70 °C
- Max. permissible relative humidity (operation)
- < 90 %
- Permissible humidity (storage/transport)
- 0 % - 90 %
Connection data
- Conductor cross section flexible max.
- 1.5 mm²
- 16 mm²
- Conductor cross section flexible min.
- 2.5 mm²
- Conductor cross section solid max.
- 16 mm²
- 1.5 mm²
- Conductor cross section solid min.
- 2.5 mm²
- Connection method
- Screw connection
- Note
- Measurement connection
- other connections
Dimensions
- Depth
- 67 mm
- Height
- 90 mm
- Width
- 72 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Input data
- Description of the input
- Digital input
- Input current
- 65 A (Imax)
- 10 A (scaled nominal current)
- Input name
- Measuring input
- Current measuring input I1, I2, I3
- Input voltage range
- 196 V AC - 460 V AC (Phase/Phase)
- 113 V AC - 265 V AC (Phase/neutral conductor)
- Measured value
- AC sine (50/60 Hz)
- Measuring principle
- True r.m.s. value measurement
- Number
- 3
- Overload capacity
- 1920 A (10 ms)
- Precision
- 0.5 % (Phase/neutral conductor)
- 1 % (Effective and apparent power)
- 0.5 %
- Reactive power (IEC 62053-23)
- Class 2
- Surge voltage capacity
- 460 V AC (Permanent)
- Voltage input signal
- 5 V DC ±5 %
Interfaces
- Connection method
- Screw terminal blocks
- Designation
- Modbus RTU/JBUS
- Interface
- RS-485
Standards and Regulations
- Conformance
- CE-compliant
- MID
- Attachment V
